Pet Food & Animal Feed
Dog Food Dryer
Product Type
Machine
High-efficiency Dog Food Dryer for rapid, uniform moisture reduction. Features multi-pass conveyor belts and precise thermal regulation.
VM Machines
Product Overview
Dog Food Dryer
Competitive price Dog Food Dryer, Dryer Capacity 100-2000kg/h, customized food dryer, OEM service.

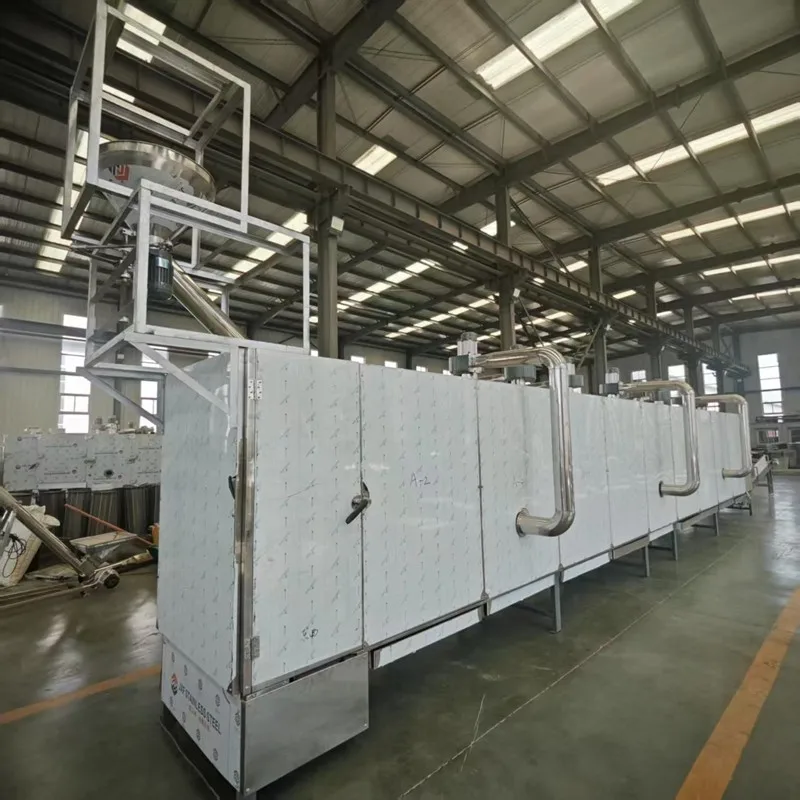

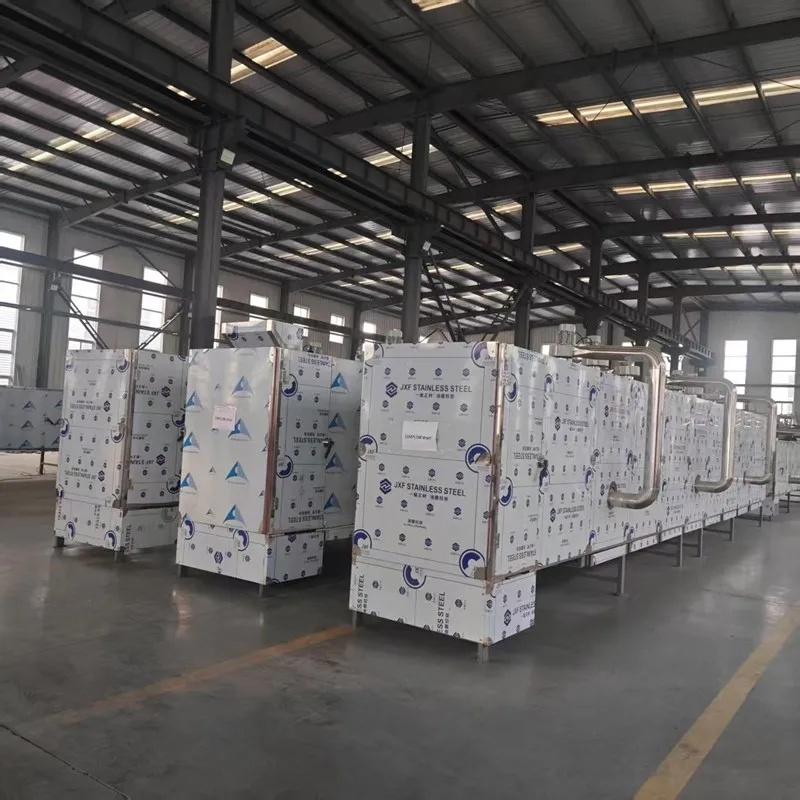

This Dog Food Dryer is mainly composed of feeding section, drying section, discharging section, conveyor belt, supporting feet and other major components.
The Dog Food Dryer is widely used in the drying of high-grade puffed pet food,cat food, aquatic feed and other materials.
Consider the customer production of different formulations, different shapes of products, especially the shape of large particles. The dryer can adjust the air volume, air pressure, material thickness, drying area and other parameters calculation, regulation, so that drying oven output higher than 10% of customer requirements, to better meet customer needs.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
Burner brand:Baltur,Italy
Lead Time:10-15 days after receiving your deposit
Product Parameter:
|
Model |
VM5-3 |
VM5-5 |
VM8-5 |
VM8-7 |
VM11-7 |
|
Capacity(KG/H) |
100-200 |
200-300 |
300-400 |
400-600 |
800-1000 |
|
Layer quantity |
3 |
5 |
5 |
7 |
7 |
|
Belt width(mm) |
1000 |
1000 |
1000 |
1000 |
1000/1200 |
|
Belt length/layer(mm) |
5000 |
5000 |
8000 |
8000 |
11000 |
|
Electric heating Power(KW) |
36 |
54 |
70 |
90 |
120 |
|
Temperature |
50-120℃ |
50-120℃ |
50-120℃ |
50-120℃ |
50-120℃ |
|
Drying time(min) |
6-30 |
8-45 |
10-50 |
10-60 |
15-120 |
|
Dimension(M) |
5.5*1.2*1.8 |
5.5*1.2*2 |
8.5*1.2*2 |
8.5*1.2*2.2 |
11.5*1.2*2.2 |
We provide different heating method such as Gas heating, LPG heating, diesel heating or steam heating, and different capacity customized service.
Video
Application of the Dog Food Dryer:
Dog food dryer is continuous-production drying equipment. The dryer being widely used for drying the piece, strip and particle shape materials in good ventilation. Drying speed of belt dryer is adjustable, evaporation strength is high and the product quality is good. The dryer is widely used and support for drying various kind of material such as pet food, cat food, dog food, aquatic feed including floating fish feed. sinking fish feed etc.
Features of Dog Food Dryer:
1. Unique structure, high utilization rate of heat energy, high efficiency, environmental protection and energy saving;
2. Circulation drying process, the moisture difference of the dried product is small, and the drying
effect is good.
3. Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
4. The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
5. The food contact part is all stainless steel, corrosion resistant.
6. Energy can be gas heating and steam heating.
7.Adjustable transit speed of net belt with accurate temperature control device.
8.Double-roller chain and chain drive make stable and smooth running.
9.Sliding board bottom of dryer for easy cleaning.
10.Suitable to dry pet food ,dog food, cat food, fish feed, etc.
