Protein Bar Packaging Machine
Product Type
Machine
Ultra-precise Protein Bar Packaging Machine utilizing advanced servo-driven technology and multihead weighing for rapid, airtight bagging with zero film waste.
VM Machines
Product Overview
Protein Bar Packaging Machine
Competitive price Protein Bar Packaging Machine with Nitrogen Filling, Fast delivery. OEM & ODM service.

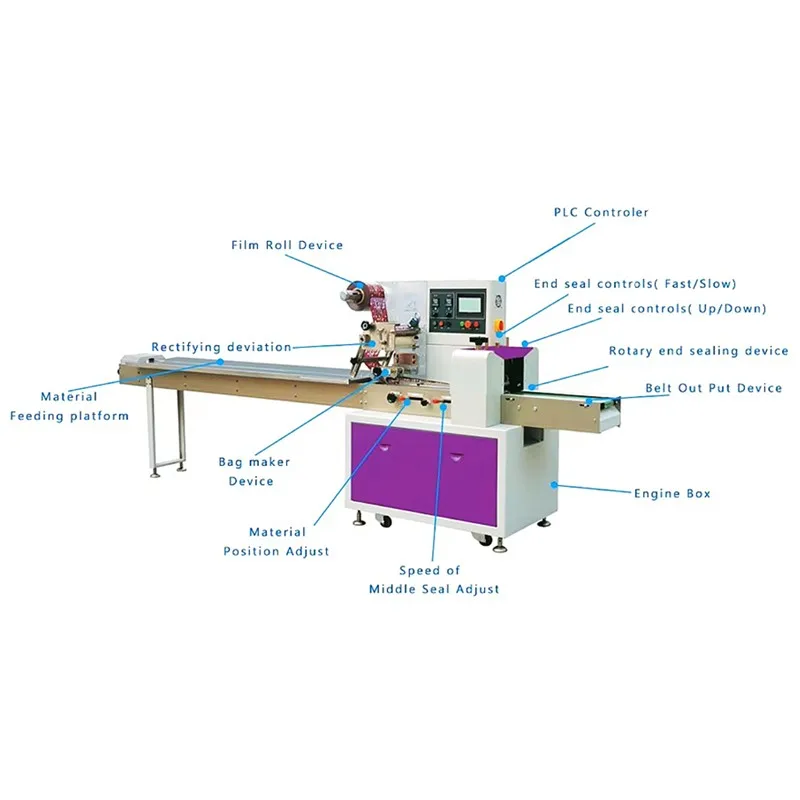

The Protein Bar Packaging Machine is one pillow type packaging machine.It is a horizontal three-side sealing device that automatically completes the processes of bag making, filling, sealing, cutting, and finished product removal.When using this machine,there are lots of snack food can be packed into one bag or pouch.Such as cakes (cupcake,bakery), cookies, biscuits and cotton candy.
Machine material:Stainless steel 304
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Machine Model | VM-250 | VM-350 | VM-450 |
Machine Capacity | 40-230pcs/min | 40-230pcs/min | 40-150pcs/min |
Bag Length | 60-230mm | 90-320mm | 150-440mm |
Bag Width | 30-110mm | 50-160mm | 60-210mm |
Product Height | Max. 45mm | Max. 65mm | Max. 75mm |
Film Width | Max. 250mm | Max. 350mm | Max. 450mm |
Film Roll Diameter | Max. 320mm | Max. 320mm | Max. 320mm |
Voltage | 220V 50-60Hz 3KW | 220V 50-60Hz 3KW | 220V 50-60Hz 3KW |
Machine Dimensions | 3770*670*1450mm | 3770*720*1450mm | 4020*820*1450mm |
Machine Weight | 425kg | 475kg | 550kg |
Optional device | Coding machine, Gas-filling device, Cake falling device, Sorting machine | ||
Video
Application of the Protein Bar Packaging Machine:
The Protein Bar Packaging Machine is one kind of film wrapping machine, It is suitable for protein bar, chocolate bar, candy, wafer cake, biscuit, bread, instant noodle, moon cakes, towels, tissues, noodles, egg rolls, sausages, fish, ice lollies, soft. candies, fresh fruits, etc.
The difference between up and down film:
According to the position of the roll film,the flow packing machine can be divided into two types : up film packing machine and down film packing machine
Up film packing machine is Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
Down film packing machine is suitable for Packaging soft, strip and irregular objects like towels, tissues, noodles, egg rolls, sausages, fish, ice lollies, soft.candies, fresh fruits, etc
