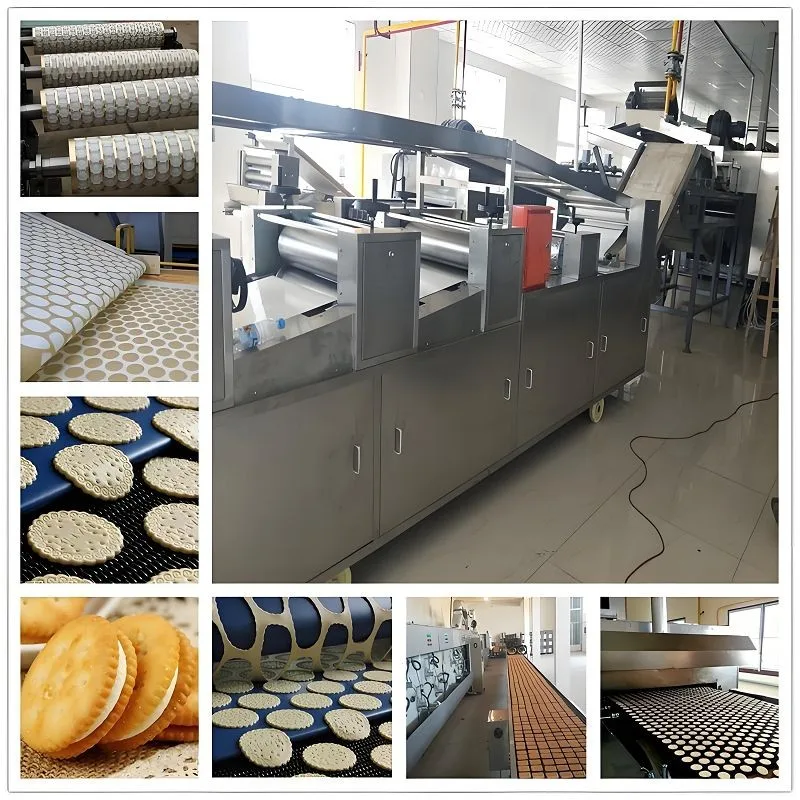

Automatic Biscuit Production Line
Competitive price Corn Puff Extruder Machine,capacity 100-3000kg/h,different mould,OEM service.
Automatic Biscuit Production Line is generally composed of a feeding machine,a set of dough roller,through the rolling and dough sheeting ,then through the roller cutting machine ,rest material recycling device,inlet oven machine can be the whole forming process.
Raw material:wheat flour, milk powder,soda,food oil,sugar,favor,water
Final products:Hard biscuits,Soft biscuits,cream biscuits, sandwich biscuits, soda biscuits, animal shaped biscuits, vegetable biscuits;Variety shapes are available such as Round,Oval,square stick etc.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM225 Biscuit Production Line | 30KW | 24KW | 40-50kg/h | 17000×1000×2000mm |
VM280 Biscuit Production Line | 60KW | 48KW | 80-100kg/h | 20000×1000×2000mm |
VM400 Biscuit Production Line | 190KW | 135KW | 150-200kg/h | 45000×2000×2500mm |
VM600 Biscuit Production Line | 260KW | 186KW | 300-400kg/h | 50000×2000×2500mm |
VM800 Biscuit Production Line | 370KW | 261KW | 500-700kg/h | 90000×2500×2800mm |
Video
Biscuit processing flow AND Equipment included:
Processing flow:Mixing system; Forming system; Baking system; Oil spraying system; Cooling system;Sandwiching system, Packing system
Equipment involved:Dough Mixer; Biscuit Forming machine; Baking oven; Oil sprayer;Cooling machine;Sandwiching machine(option one);Automatic packing machine.
Processing Equipment of Automatic Biscuit Production Line:
Horizontal dough mixer:
Function: mixing wheat flour and water into dough.
The horizontal mixer is a base mixer for industrial mixing, which can be used on the soft and hard dough, especially for soft or cookie dough.
Biscuit Forming machine:
Function: This machine can make different shapes of soft or hard biscuit ,just need to change the mould.
The Soft Biscuit is commonly known as shortbread biscuit obtained, that is, from the tender dough (fragile, not hard); they are obtained using a rotary machine, therefore shortbread biscuits are also technically known as rotary biscuits.
Soft biscuits will have fewer processing machines than Cracker/Hard biscuit form mixer can directly to the forming no need extra dough process unit.
Baking oven Or Tunnel oven:
Function:Baking is carried out in a tunnel oven with a wide range of regulation for ensuring optimal baking of various types of biscuits.
There are three types of tunnel oven electric, gas and diesel oil. It depends on the natural resources of different countries. Some countries is abundant in gas.
Biscuit Stacking Machine：
Function:This biscuit stacking machine accpects the biscuits from the cooling converyor,forms them into lanes,stacks them on edge through the star wheel device,and conveys them to the packing conveyor.
Oil sprayer:
Function: praying oil on the surface of biscuit.
After baking, if the customer wants to add a better smell and shining dark color to the biscuit then the Oil sprayer system is a must before the biscuit cools and packed.
sprayer is dish type to reach the mist type to save the waste of the oil.

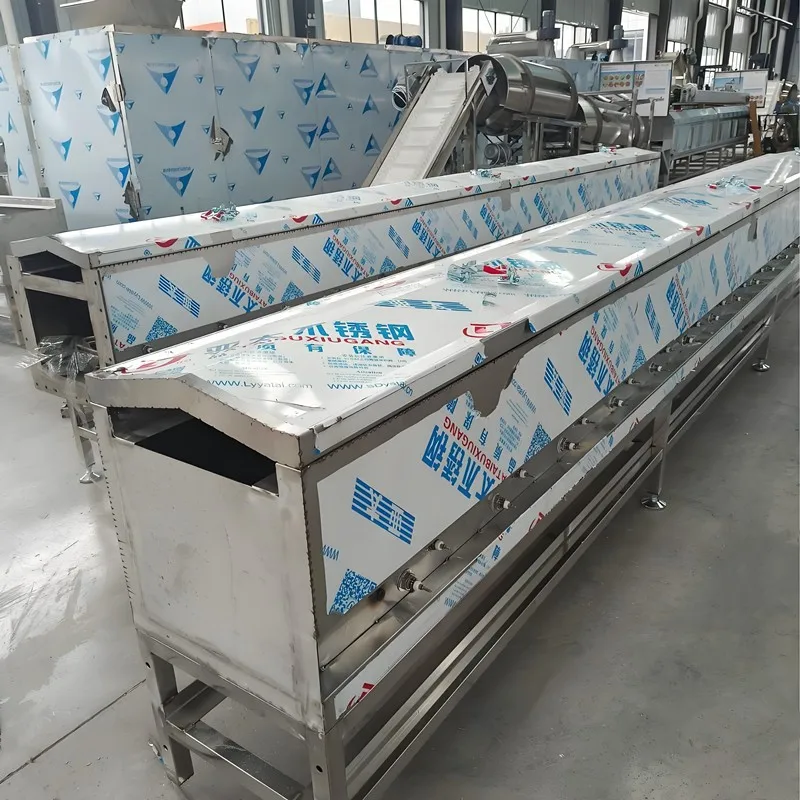

Cooling Conveyor:
Function: reduce the temperature of biscuit after baking.
Biscuit sandwiching machine(option one):
The automatic biscuit sandwich machine can be filling with chocolate, cream, jam or cheese.
It’s used for sandwiching for different flavour.It also can transfer to the packing machine automatically.
Automatic biscuit packing Machine:
The automatic biscuit packing machine have special advantage to pack packing different kinds of biscuit such as soft biscuit,hard biscuit,sandwich biscuit,cookies,soda cracker.It is stable,high speed,accurate,with high packing performance.The finished production is look upmarket,attractive.
