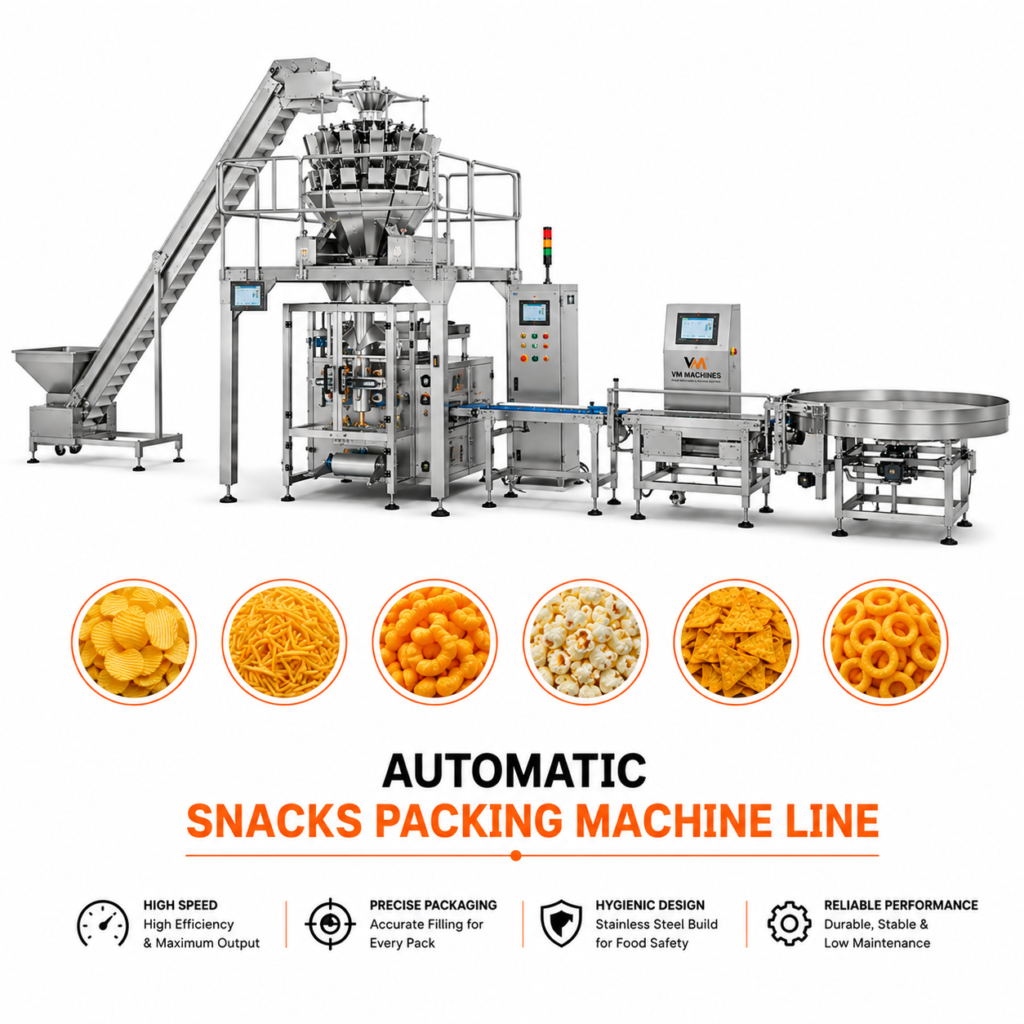

Automatic Snacks Packing Machine

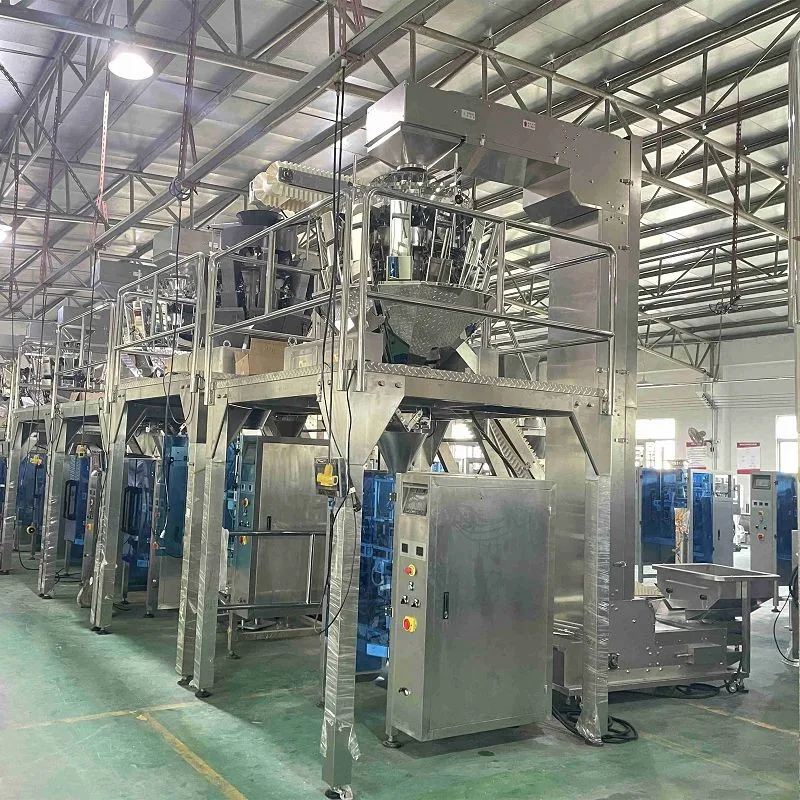

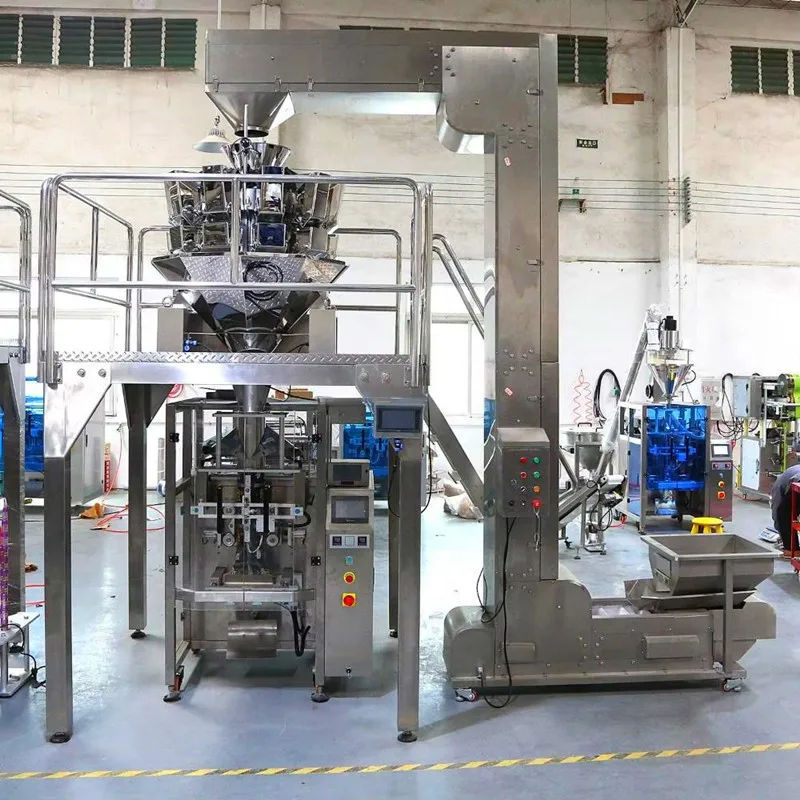

This Automatic Snacks Packing Machine is one vertical packing machine with multi heads weigher.It consist of Z shape elevator,multi heads weigher,vertical packing machine,bag conveyor and platform.
This Automatic Snacks Packing Machine is one vertical packing machine with multi heads weigher.It consist of Z shape elevator,multi heads weigher,vertical packing machine,bag conveyor and platform.
It automatically complete conveying product, measuring, bag-forming, filling, blowing nitrogen, date and code printing, cutting, finished product delivery,adopt famous brand PLC control system, wide version touch screen, convenient to operate. Film drawing down system and horizontal sealing controlled by servo motor; Multi-head balance can well assure the accurate weight of each package
Machine material:Stainless steel 304
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Multi head Weigher Vertical Packing machine | |||||
Model | VM-320 | VM-420 | VM-520 | VM-720 | VM-920 |
Film width | 120-320 mm | 420 mm | 520 mm | 720 mm | 920 mm |
Bag length | 50-200 mm | 80-300mm | 80-400mm | 80-500mm | 80-650mm |
Bag width | 50-150 mm | 50-200 mm | 70-250 mm | 60-350 mm | 200-450 mm |
Packing grams | 50-150 ML | 50-1500ML | 50-3000ML | 50-5000ML | 100-10000ML |
Packing speed | 35-70bpm | 35-70bpm | 35-70bpm | 35-70bpm | 35-70bpm |
Power | 220V/380V/50/60 HZ | ||||
Machine dimension | 970*680*1960 mm | 1200*1500*1700 | 1500*1600*1800 | 1600*1700*1800 | 1600*1700*1800 |
Machine weight | 300 kg | 450 kg | 500kg | 600 kg | 750 kg |
We provide OEM service ,we can customize pacing machine for your needed | |||||
Video
Application of Automatic Snacks Packing Machine:
This Automatic Snacks Packing Machine is suitable for many kinds of grain such as:
puffed food, candy, quick-frozen, pet food, potato chips, crispy rice, walnuts, pistachio nuts, candy, melon seeds, quick-frozen dumplings, dumplings, jelly, plum, peanuts, chocolate, nuts, and other granular material..
We can also custom according to your pack material .
Features of Automatic Snacks Packing Machine:
1. Combination scale, picking the best combination through the computer,got high accuracy and speed .
2. High-precision digital weighing sensor make sure the measure realized.
3. Chinese/English or custom your language shows on the touch screen,can save 10 kinds of working parameters in it.
4. Design of dust-proof and water-proof of IP65 system. All the parts of machine is made by stainless steel, very cleanly. The whole close prevent the accumulation of material, easy for clean.
5. You can adjust the speed of material-door’s open according to the feature of material, prevent of material’s break.
6. The automatic date statistical functions records every bags, pass rate and deviation during a produce.
7. Optional equipment: Patterned hopper, material hopper, printing set and other set.
