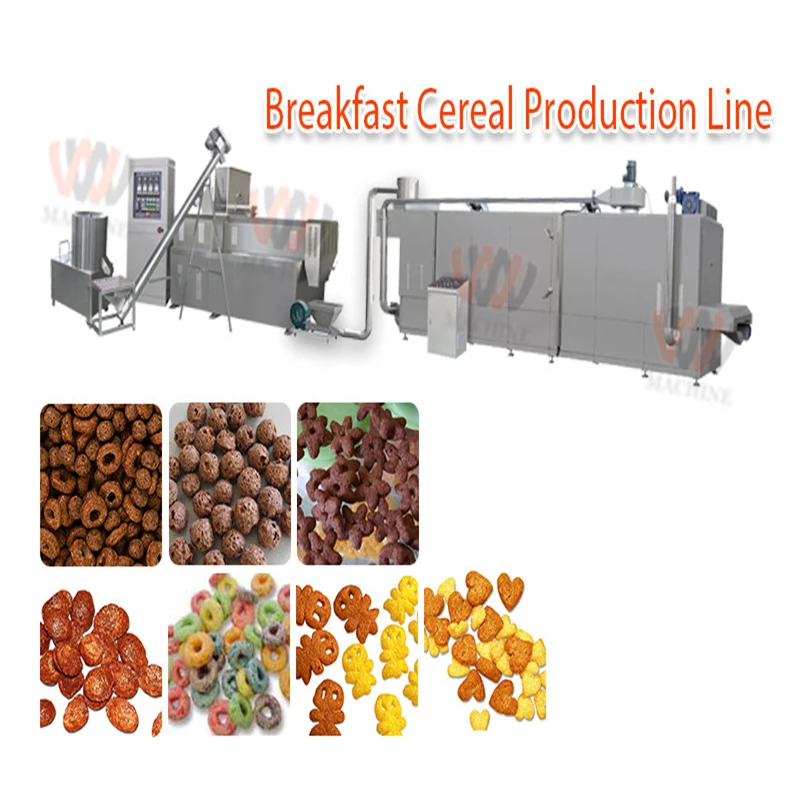

Breakfast Cereals Production Line
Competitive price Corn Puff Extruder Machine,capacity 100-3000kg/h,different mould,OEM service.
Automatic breakfast cereals production line will create a myriad of standard shapes such as Curls ,Balls, Flakes, Onion Ring etc. A wide range of materials may be used.
Raw material: Corn , rice, wheat, oat, barley powder, sugar ,salt, favor such as coco powder, cheese; water
Final products: By adding extra mould, Can produce corn curls, cheese ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape.
Machine material: Stainless steel 304 or as customer’s request
Electricity component brand: Siemens, ABB motor available; Delta, LG inverter available
Burner brand: Baltur ,Italy
Lead Time:10-15 days after receiving your deposit
After sale service provided: engineer field installation; video technical support
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VMG65 | 92KW | 64KW | 120-150kg/h | 17500×1500×2500mm |
VM70 | 130KW | 90KW | 200-250kg/h | 19000×1500×2500mm |
VM85 | 240KW | 167KW | 300-500kg/h | 23000×1500×2500mm |
VM65 | 150KW | 100KW | 250-300kg/h | 22000×1500×2500mm |
VM75 | 185KW | 132KW | 300-500kg/h | 23000×2000×2800mm |
VM85 | 296KW | 220KW | 800-1000kg/h | 30000×3000×3800mm |
Video
Breakfast cereals processing flow AND Equipment involved:
Processing flow: Mixing system; Extrusion system; Conveyoring system; Drying system; Packing system
Equipment involved: Mixer; Spiral conveyor; Double screw extruder; Air conveyor; Drying oven; Automatic packing machine.
Seperate equipment description:
Flour mixer or Blender
Function: mixing and hydrating flour
Spiral Conveyor
Function: transferring the Materials spirally from the corn blender to an extruder

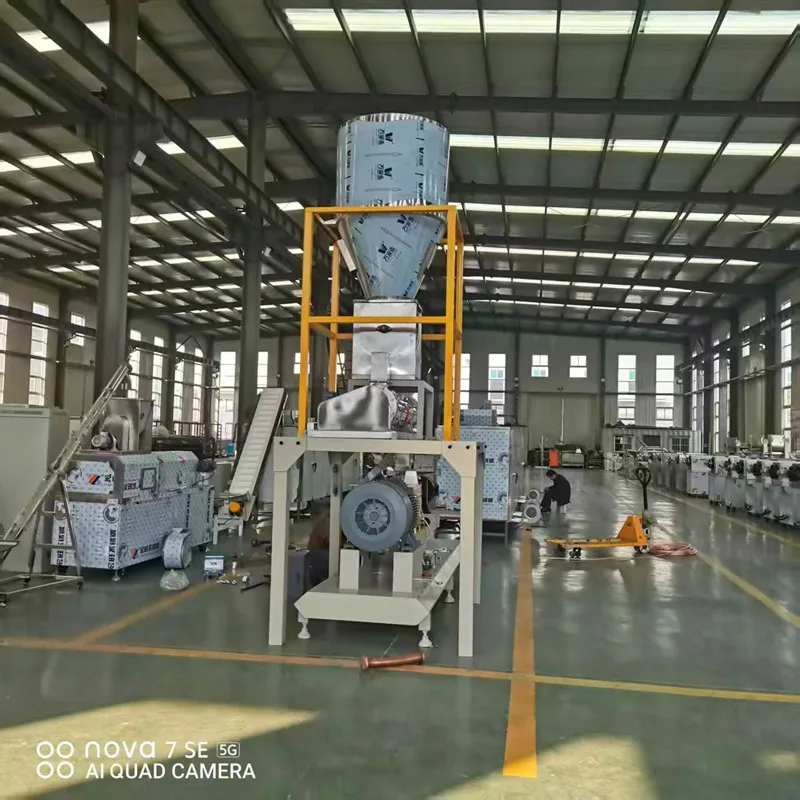

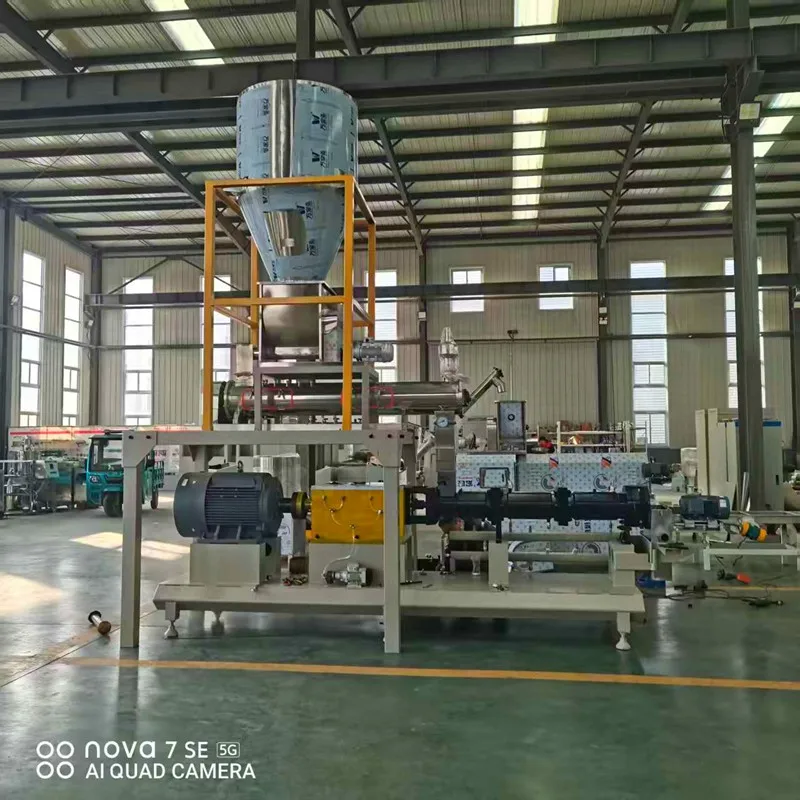

Double Screw Extruder Or Twin Screw Extruder
Production Capacity: 120 – 1000 Kg/h
Depending on the type of raw materials, the amount of flavor added and also the thickness of the grain
The extruder can produce up to 40 shapes of puff snack.
Air Conveyor:
Function: transferring the creals from the extruder to an dryer

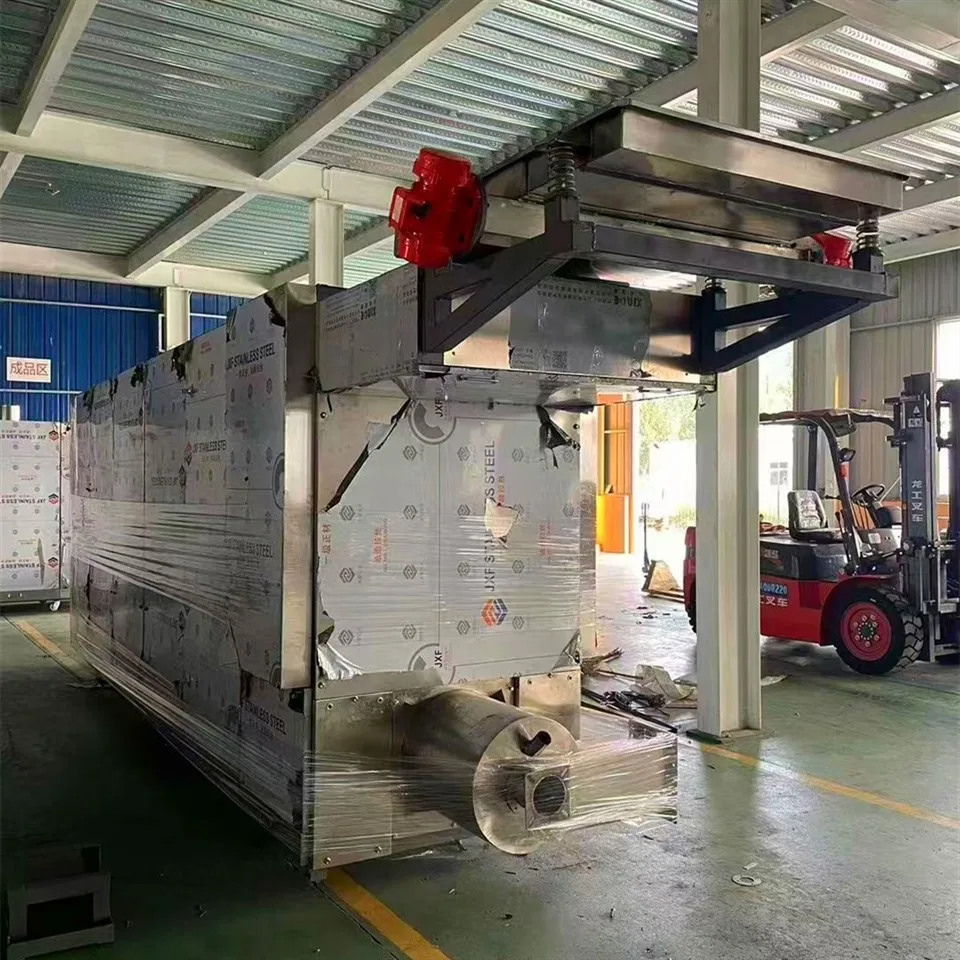

Dryer:
Equipped with multi layers conveyor
Function: roasting and drying puff stuffs and fully extracting humidity
Working System : customized
1-Electricity system
2-Diesel system
3-Gas system
Cooling machine：
Function: reduce the temperature of final Breakfast cereals.
Breakfast cereals Packing Machine:
Function: weighing filling and packing the breakfast cereal into bags for sale
After-sale Service for Breakfast Cereals Production Line:
1. Free consultation service before, during, and after sales;
2. Free project proposal and design services;
3. Free debugging of equipment before deliverying;
4. Free management of equipment for long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free to provide new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
