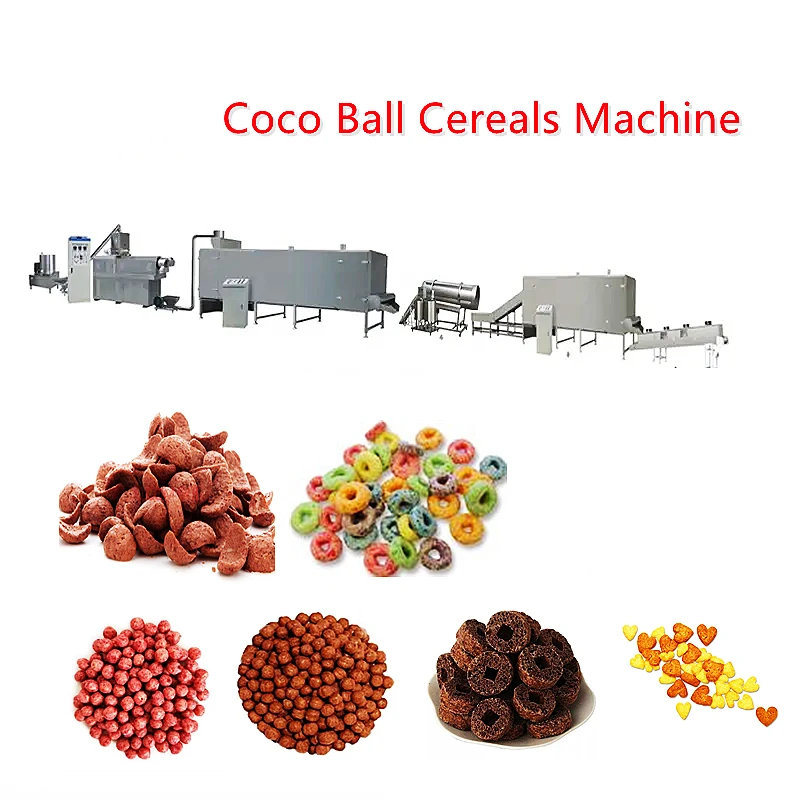

Coco Ball Cereals Machine
Competitive price Coco Ball Cereals Machine, twin screw extruder capacity 100-1000kg/h, OEM service.
This automatic Coco Ball Cereals Machine is a fully automatic processing line which is designed and developed from Wanwei company combining with European advanced technology.The Coco Ball production line uses corn flour,wheat flour, oat etc as its raw material.By twin screw extruder to accomplish cook curing,pelleting etc.Then by baking ,coating and other technological process to produce instant-eat crispy Coco ball cereal or other breakfast cereal with regular ,sweet, salty etc flavors. Its breakthrough solves various difficult problem compared with domestic equipment’s , for example: rollers sticking ,low capacity, low shaping rate, poor taste etc. Scientific processing technique can keep cereals nutritional elements .
One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbohydrates and dietary fibre, strengthens lots of micro elements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, milk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.
Raw material: Corn, rice, wheat, oat, barley powder, sugar, salt, favor such as coco powder, cheese; water
Final products：Coco Ball Cereal, breakfast cereals, fruit-oat chips, multi-grains high fiber grain chips. Variety shapes are available.
Machine material: Stainless steel 304 or as customer’s request
Electricity component brand: Siemens, ABB motor available; Delta, LG inverter available
Burner brand: Baltur, Italy
Lead Time:10-15 days after receiving your deposit
After sale service provided:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Provide management of equipment long distance shipping from seller’s factory;
5. Provide training of equipment maintenance and operating personally;
6. Provide new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service.
8. All spare parts and wearing parts are attached with the machinery for free.
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM65 | 92KW | 64KW | 120-150kg/h | 17500×1500×2500mm |
VM70 | 130KW | 90KW | 200-250kg/h | 19000×1500×2500mm |
VM85 | 240KW | 167KW | 300-500kg/h | 23000×1500×2500mm |
VM65 | 150KW | 100KW | 250-300kg/h | 22000×1500×2500mm |
VM75 | 185KW | 132KW | 300-500kg/h | 23000×2000×2800mm |
VM85 | 296KW | 220KW | 800-1000kg/h | 30000×3000×3800mm |
Video

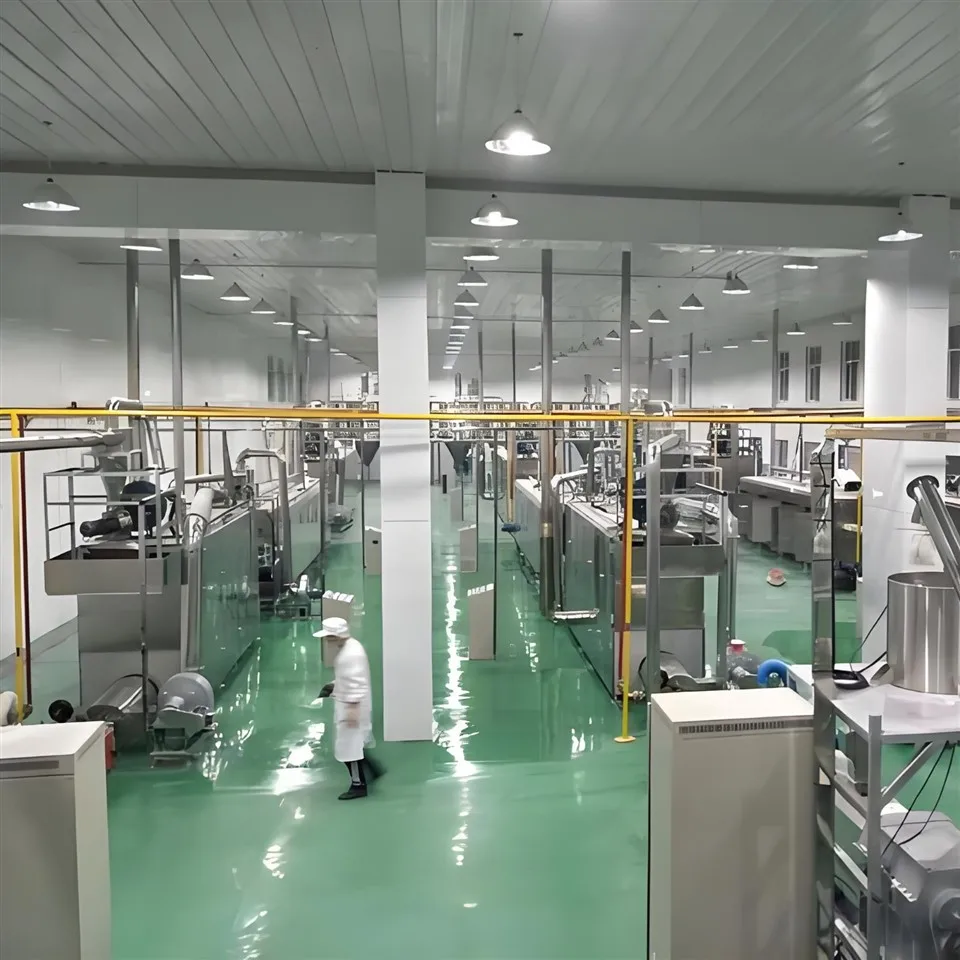

Coco Ball Cereals processing flow AND Equipment involved:
Processing flow :Mixing system; Extrusion system; conveyoring system; Drying system; Flavoring system; Packing system
Equipment involved: Mixer; Spiral conveyor; Double screw extruder; Air conveyor; Drying oven; Flavor mixing drum; Oil sprayer; Automatic packing machine.
Separate Equipment Description：
Flour mixer or Blender
Function: mixing and hydrating raw material such as corn powder, rice powder, or oat powder.
Mixer makes the raw material which adding water and liquid chemical additive fully mixer equally . The machine mix the flour and prepares them ready to be used in the next step .
All parts adopt food grade stainless steel. It makes the powder raw materials, water and additives stirred and mix evenly by the high-speed rotation stirring wings in the stirring drum. Drum and stirring wings are made of stainless steel.
Spiral Conveyor
Function: transferring the Materials spirally from the corn blender to an extruder

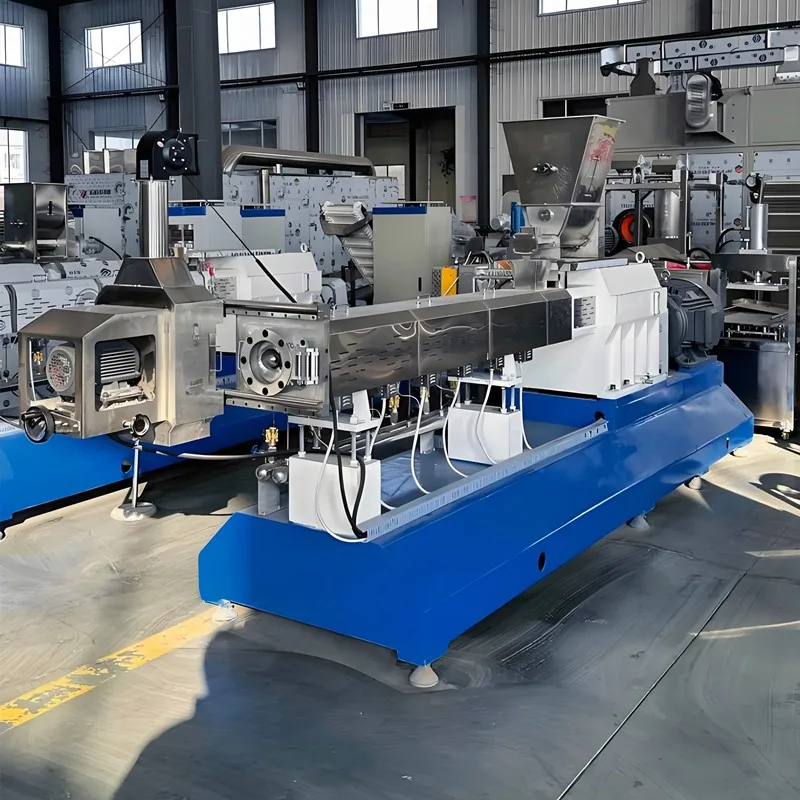

Double Screw Extruder Or Twin Screw Extruder
Production Capacity: 120 – 1000 Kg/h
Function: Raw material is curing and puffed in extruder, becoming different shapes of puffing snacks with moulds changing.
It consists of feeding system, extruding system, cutting system, heating system, controlling system and cooling system, cooling die system. Barrel adopts mold temperature controller for heating. Adopt famous brand bearing with strong capacity.modular screw can be assembled freely according to different material and products.
Air Conveyor or Air blower :
Function: transferring the Materials from the extruder to an oven.

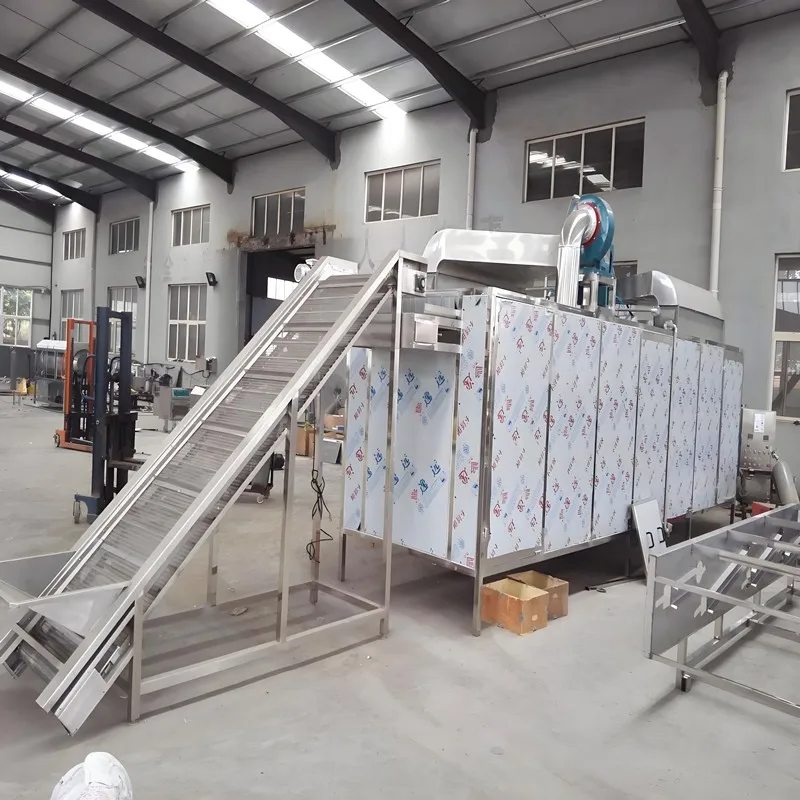

Drying Oven:
Equipped with multi layers conveyor.
Function: roasting and drying corn chips and fully extracting humidity
Working System : customized
1-electricity system
2- Diesel system (Baltur Italy)
3- Gas system (Baltur Italy)
The heating source for this dryer can be electric, gas or steam.The material is stainless steel or can be customized.This dryer machine consists of rack system, combustion system, de-humidifier system, insulation system and controlling system.after flaking, it helps to remove the moisture on the surface of fortified rice.With vibrating motor, it will prevent sticky problem.
Flavour treatment or seasoning machine (Flavor mixing drum)
Function: spreading homogeneous mixture of chocolate and flavor on the outside of the cereal. This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil or sugar.
Working Principle:Spraying nozzle can adjust oil amount equally. The sugar coating is built up by tumbler system.The tumbler is derived by a motor, using for mixing and melting the water, sugar and other additives.
Sugar or syrup sprayer
Function: spraying sugar or syrup on surface of the Coco ball indsie Flavor mixing drum.
Capacity: 50 Liters per tank
Oven
Function:Bake the coated Coco Ball Cereal to make them crispy again after syrup coating .
Cooling machine
Function:cool down and convey the coco ball cereals before packing.
Coco Ball Cereals Packing Machine
Function:weighing filling and packing the chips into bags for sale
