Core Filled Puff Snack Production Line
Core Filled Puff Snack Production Line , capacity100-1000kg/h , different shapes snack for option.
The Core Filled Puff Snack Production Line adopts corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower,etc.
Raw material:wheat flour, buckwheat flour, oats flour, corn powder, rice powder , millet, black rice,buckwheat, sorghum oats.
Please note that all the materials should be in powder(flour) or grits form.
Final products:Variety shapes are available for Round Bar ,Square bar,Pillow etc.
Capacity:100-1000kg/h
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
WAN MACHINE service:
1. Consultation service before, during,and after sales;
2. Project planning and design service;
3. Debugging of equipment until everything is functional;
4. Management of equipments’ long distance shipping from seller’s factory to the named place by buyer;
5. Training of equipment maintenance and operating personally;
6. New production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service.
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM65 | 92KW | 64KW | 120-150kg/h | 17500×1500×2500mm |
VM70 | 130KW | 90KW | 200-250kg/h | 19000×1500×2500mm |
VM85 | 240KW | 167KW | 300-500kg/h | 23000×1500×2500mm |
VM65 | 150KW | 100KW | 250-300kg/h | 22000×1500×2500mm |
VM75 | 185KW | 132KW | 300-500kg/h | 23000×2000×2800mm |
VM85 | 296KW | 220KW | 800-1000kg/h | 30000×3000×3800mm |
Video
Processing flow of automatic the core filled snack production line:
Processing flow :Mixing system; Extrusion system; Cutting system;Filling system;Conveyoring system; Drying system; Flavoring system; Packing system

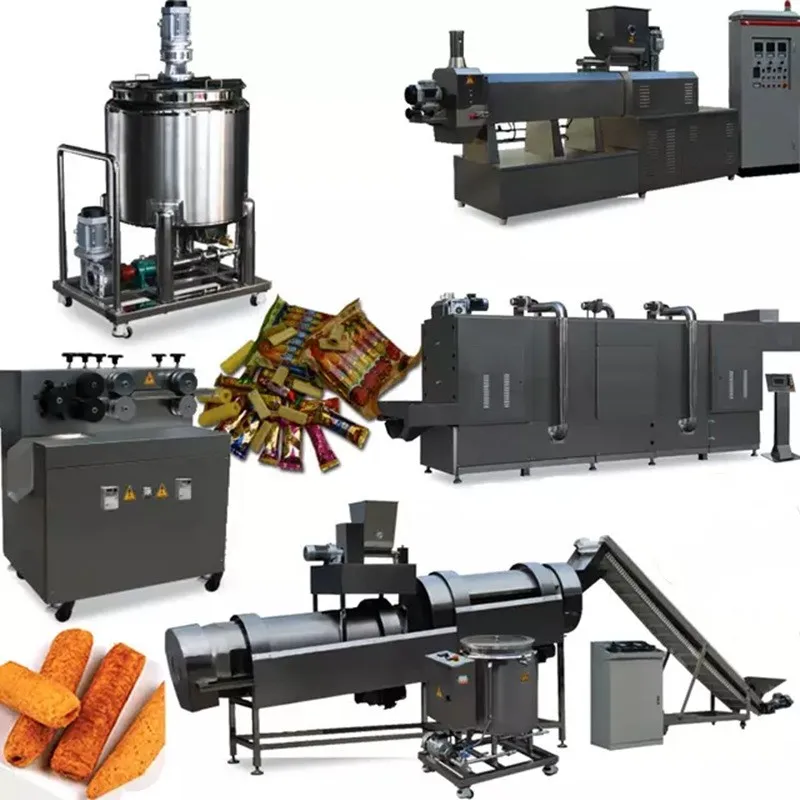

Equipment involved:Mixer; Spiral conveyor; Double screw extruder; Cutter;Stuff filling machine;Belt conveyor; Drying oven; Flavor mixing drum; Oil sprayer; Automatic packing machine.
Processing Equipment in Core Filled Snack Production Line：
1.Flour Mixer: Mix raw materials like corn flour, wheat flour, and rice flour, etc. with a certain amount of water evenly and sufficiently.
2.Screw conveyor: Feed the mixed materials to the feeding hopper of core filled snack double screw extruder.
3.Twin Screw Extruder: Raw materials fall into the extruding system from the feeding hopper. Under the function of high temperature and high pressure, the products are squeezed out. We can set different configurations for making different products.
4.Core filling machine:
Function: Fill the chocolate or cream into the center of product.
Principle:The colloidal core material is heated, insulated and stirred evenly.The screw pump will inject the core material continuously and evenly into the bulging shell.
5.Snack bar Cutter:cut into Round Bar ,Square bar,Pillow etc;Pillow shape need one separate cutter.
6.Belt Conveyor: Function: transferring the Materials from the extruder to an dryer.
5.Multi-layer Dryer: The dryer in the snacks manufacturing plant is mainly the electric type. Temperature is adjusted through the control cabinet from room temperature to 120 degree. There is a double-layer stainless mesh bag inside. The baking time is adjusted according to the speed. The oven of three-layer, five-layer, and seven-layer for your selection.
6.Oil sprayer: The oil sprayer spray oil on the surface of snack food through the rotating drum.The oil spraying amount and time can be adjusted.
7.Automatic Flavoring Line: There are an octagonal drum, single drum, and double drum flavoring. According to the capacity and product characteristics, we also have oil spraying, sugar spraying and coating equipment for your choice.
8.Core filled snack packing machine: This high performance automatic sanck food packaging machine, can complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Advantage Of Core Filled Snack Production Line:
1:Automatic processes enable continuous production, increasing output while minimizing manual labor and human error.
2:Simple structure in linear type ,easy in installation and maintenance.
3:Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4:High pressure double crank to control the die opening and closing.
5:Running in a high automatization and intellectualization,no pollution
6:Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
