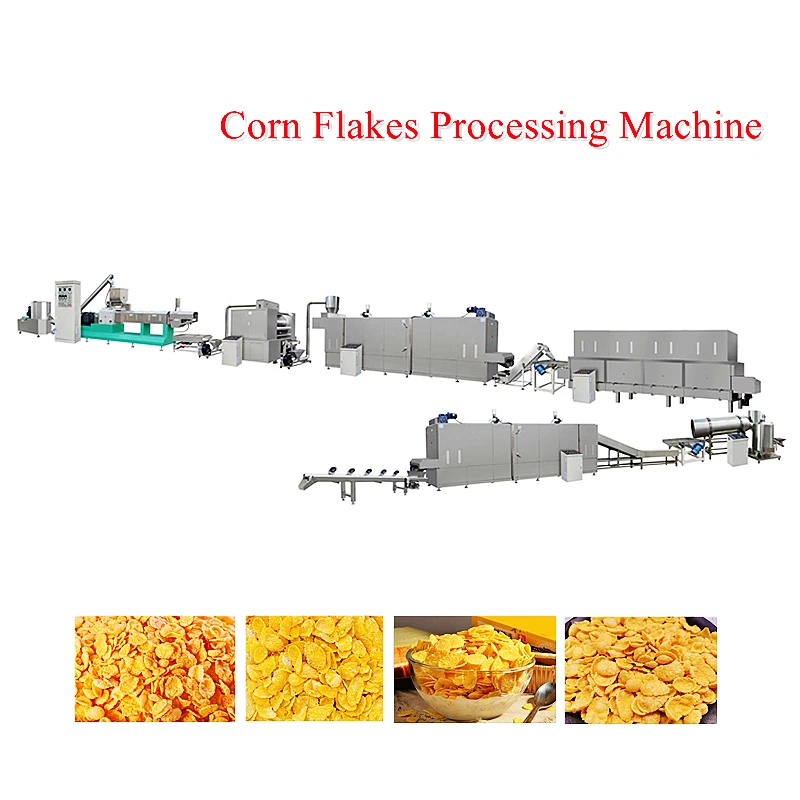

Corn Flakes Processing Machine
Automatic Corn Flakes Processing Machine,Capacity100-1000kg/h, Different shapes and OEM service.
Our automatic Corn Flakes Processing Machine is a fully automatic line which combines our professional team with the European advanced technology; It is a breakthrough to solve the problems regarding to sticky material on the roller, low output of flakes pressing ,low shaping rate ,poor taste and so on .Reasonable equipment collocation and realizable process control ensure high quality and delicious corn flakes production. The processing line not only reduces costs by improving efficiency, but also improves market competitiveness. This Corn flakes breakfast cereal processing line can produce corn flakes and different shapes of breakfast cereals, like ball, ring, star, letter and so on.
Raw material: Corn , rice, wheat, oat, barley powder, sugar, salt,favor such as coco powder, cheese; water
Final products: corn flakes and different shapes of breakfast cereals, like ball, ring, star, letter and so on.
Machine material: Stainless steel 304 or as customer’s request
Electricity component brand: Siemens, ABB motor available; Delta,LG inverter available
Burner brand: Baltur, Italy
Lead Time:10-15 days after receiving your deposit
service provided:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller’s factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller’s factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
8. The seller is responsible for the nature damage of the machinery in one year except for man-made damage.
9. All spare parts and wearing parts are attached with the machinery for free.
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM65 | 92KW | 64KW | 120-150kg/h | 17500×1500×2500mm |
VM70 | 130KW | 90KW | 200-250kg/h | 19000×1500×2500mm |
VM85 | 240KW | 167KW | 300-500kg/h | 23000×1500×2500mm |
VM65 | 150KW | 100KW | 250-300kg/h | 22000×1500×2500mm |
VM75 | 185KW | 132KW | 300-500kg/h | 23000×2000×2800mm |
VM85 | 296KW | 220KW | 800-1000kg/h | 30000×3000×3800mm |
Video
Corn Flakes processing flow AND Equipment involved:
Processing flow: Mixing system; Extrusion system; Conveyoring system; Pressing system; Pre-Drying system; High temperature baking system; Sugar coatring system; Final drying system; Packing system.
Equipment involved: Mixer; Spiral conveyor; Double screw extruder; Air conveyor; Roller dryer; Pressing machine; Pre-Dryer; High temperature hot air oven; Sugar coating machine; Sugar sprayer; Final dryer; Cooling machine; Automatic packing machine.
Seperate Equipment Description：
Flour mixer or Blender
Function: Mixing various kinds of raw material,such as corn powder and water,etc.
Working Principle:The motor drives the stirring cage, automatic water adding device and pneumatic discharge valve.
Spiral Conveyor
Function: transferring the Materials spirally from the corn blender to an extruder

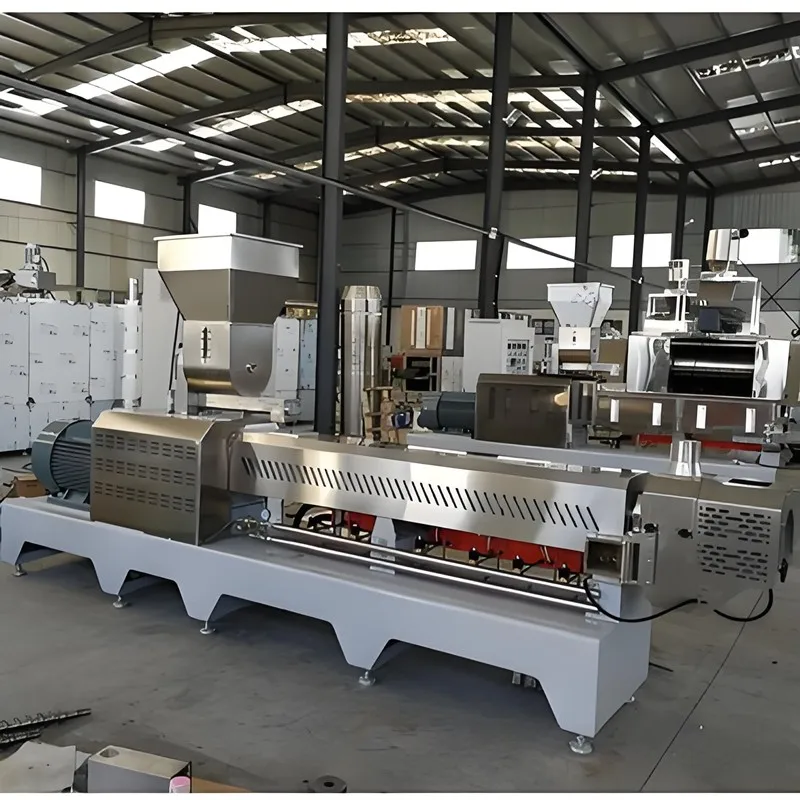

Double Screw Extruder Or Twin Screw Extruder
Production Capacity: 120 – 1000 Kg/h
Function:Raw material is curing and puffed in extruder, becoming different shapes of puffing snacks with moulds changing.
Working Principle:It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system.
Air Conveyor or Air blower
Function: transferring the Materials from the extruder to an oven.
Roller dryer
Function:Separate the product,NON sticking each other.
Air Conveyor or Air blower
Function: transferring the flakes from the pressing machine
Pressing machine
Function:press the puffed corn granules to corn flakes
Function: The motor drives two pressing rollers rotating at acontrary direction whose speed can be adjustable.
Pre Dryer
Equipped with 3 layers conveyor
Function: extracting humidity and making the flakes to hard situation.
The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system,conmbustion system, dehumidifier system, sheet metal insulation system and controlling system.
Working System : customized
1-Electricity system
2-Diesel system (Baltur Italy)
3-Gas system (Baltur Italy)
Hoister
Function: transferring the flakes from the vibrator
Vibrator
Function: vibrating the flakes separately and uniformly.
High temperature hot air oven
Function: high temperature roasting the flakes become crispy with bubble structure.Bubbles will appear on surface , and after hot air drying Corn flakes will be crispy .
Working Principle:Heat exchanger is burned by gas or diesel burner. Hot air is sprayed by high pressure blower , which makes corn flakes puffed and bubbles instantly.
Sugar melting machine
Function: prepare sugar stuff.
Sugar sprayer
Function: mixing syrup and spraying by nozzle
Capacity: 50&100 Liters tank
Sugar coating machine (mixing drum)
Function: This device is applicable to a wide range of puffing corn snacks in seasoning and coating liquid sugar.
Working Principle:Spraying nozzle can adjust oil amount equally. The sugar coating is built up by tumbler system.
The tumbler is derived by a motor, using for mixing and melting the water, sugar and other additives.
Final dryer
Function: extracting humidity from coated syrup.
Heating System: option
1-Electricity system
2-Diesel system (Baltur Italy)
3-Gas system (Baltur Italy)
Cooling machine
Function:reduce the temperature of final corn flakes
Corn flakes Packing Machine
Function:This automatic weighing and packaging machine is specially designed for granular and solid materials. It is suitable for frozen food,puff snacks,corn flakes, whole grains, puffed food, candy biscuits, agricultural dry goods, preserved nuts, hardware and plastics, chemical particles, Chinese herbal medicine, seasoning sugar, etc.
Features of the corn flakes packing machine:
1.Efficient and simple to use.
2.Use famous brand electric and pneumatic components, stable and long life circle.
3.Superior mechanical components.
4.Easy to install film.
5.Apply advanced operating system.
6.Easy to use and programmable.
7.To be used on VIZI High quality machine.
8.Four servo motor for reciprocating pull film system, can reach 180 bpm.
9.Automatically film rectifying function,smart and convenient.
10.High speed packaging, save labour, resources and place.
11.Many kinds of languages can be chosen..
