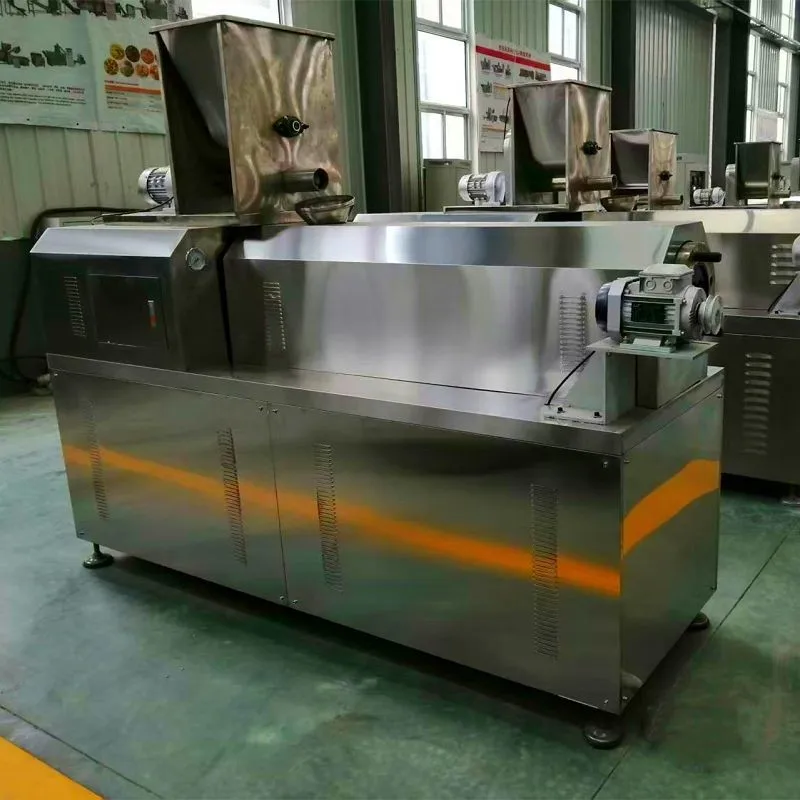

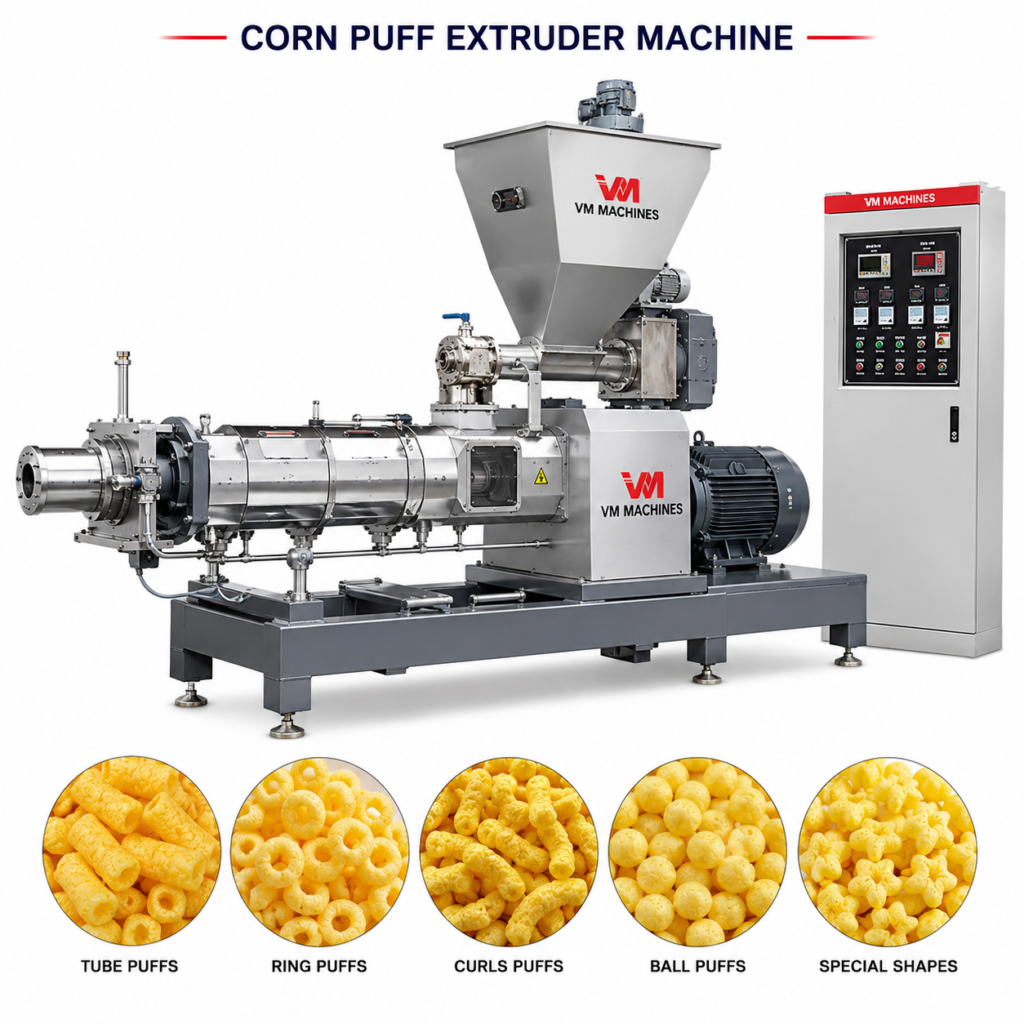

Corn Puff Extruder Machine

Competitive price Corn Puff Extruder Machine,capacity 100-3000kg/h,different mould,OEM service.

Corn Puff Extruder Machine adopts international advanced extrusion technology and is researched and developed in extrusion food industry field. This machine can use corn, rice, oat, bean, buckwheat and so on as the raw materials, through mixing,extruding, explanding, shaping, drying or frying, oil spraying, and seasoning technology, to produce various extrusion food.

Machine material:Stainless steel 304 or as customer’s request

Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available

Burner brand:Baltur,Italy

Lead Time:10-15 days after receiving your deposit

Product Parameter:

Model	Installed Capacity	Main motor power	Output	Dimension
VM65	34KW	22KW	100-150kg/h	2600×1000×1900mm
VM70	46KW	30KW(37kw,45kw)	200-250kg/h	3200×1000×1900mm
VM85	105KW	75KW	300-500kg/h	4500×1200×2300mm
VM90	125KW	90kw	800-1000kg/h	4800×1500×2500mm
VM95	145KW	110kw	1000-1500kg/h	5000×1500×2500mm
VM120	168KW	132kw	2500-3000kg/h	5500×1500×2800mm

Video

Structure of the Corn Puff Extruder Machine：

Main Accessories	Function
Anti-blocking feeder	Makes sure the even feeding and stable discharge of materials.
Double shaft preconditioner	Enables the materials stay longer in the preconditioner and evenness in precondtioning, improves the precure degree and increases the capacity.
Gearbox	Processed by internationally advanced process technology, ensuring the machines run in long time without malfunction.
Lubrication and cooling system	Adopts refined filtration forced cooling, creating best working conditions for the bearings.
The feeding system	Adopts double spiral forced feeding, feeding uniformly and widely.
The screw	Segmented combined screw, suitable for a wide range of raw materials. With self-cleaning function.
The rotary cutting device	Adopts a suspended mold (knife) assembly and a linear bearing tool adjusting device to adjust the tool safely, accurately and quickly.

Features of Corn Puff Extruder Machine:

1.Adjustable speed of feeder, main drive and rotary cutter by inverter with powerful impetus, stable running and low consumption.
2.Segmental assembled screw made of alloy with long life is applied to more kind of material and products.
3.Automatic lubricating system reduces energy consumption and prolongs the life for use.
4.Forced double screw feeding set keeps equal and abroad feeding.
5.Beeline bearing knife system ensures the exact and quick changing of knife.
6.Double screw extruder cleans it by itself.

FAQ for Corn Puff Extruder Machine:

Q: 1.What is the main material to make corn puff snacks?

A: The corn puff snacks making machine can use corn flour as material.
The puff snacks making machine can adopt rice flour, wheat flour or oat flour or any other grain as raw material also.

Q: 2.This automatic puff snack production line only produce one shape snack?

A: NO, you can achine different shapes by changing the DIE of double screw extruder, or changing different CUTTER or SHAPER MACHINE.

Q: 3.How to do installation after sale?

A: Option one: We provide video technical service to guide you to operate the fried chips machine normally,save your money and production time.
Option two: We can send engineer to install the puff snack production line and Train your employees in your factory.
Option three: Also you can contact our local field installation service

Technical Parameters

Model	Installed Capacity	Main motor power	Output	Dimension
SLG65	34KW	22KW	100-150kg/h	2600×1000×1900mm
SLG70	46KW	30KW(37kw,45kw)	200-250kg/h	3200×1000×1900mm
SLG85	105KW	75KW	300-500kg/h	4500×1200×2300mm
SLG90	125KW	90kw	800-1000kg/h	4800×1500×2500mm
SLG95	145KW	110kw	1000-1500kg/h	5000×1500×2500mm
SLG120	168KW	132kw	2500-3000kg/h	5500×1500×2800mm
