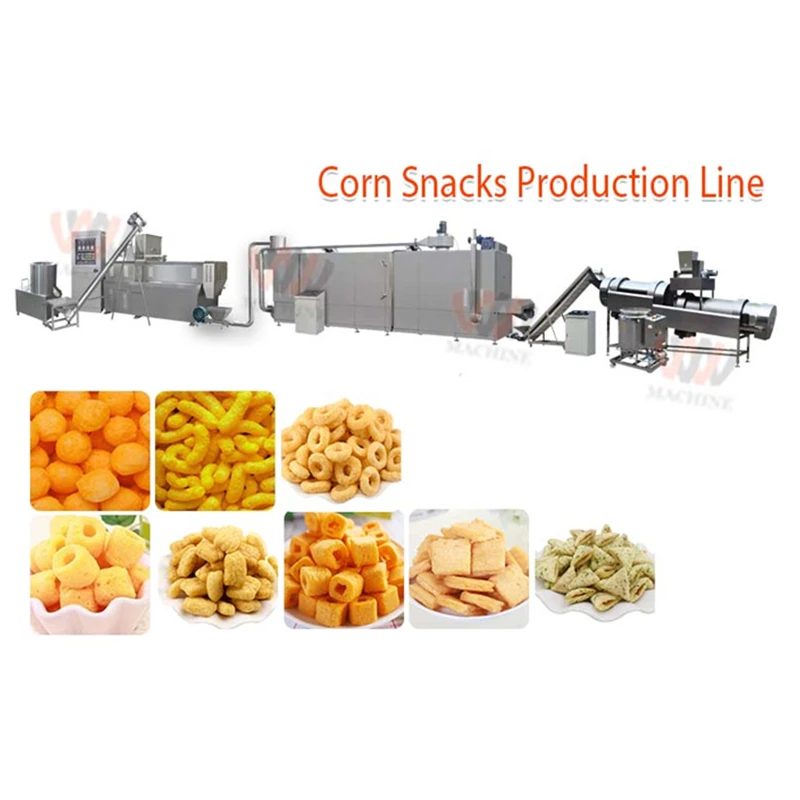

Corn Puff Making Machine

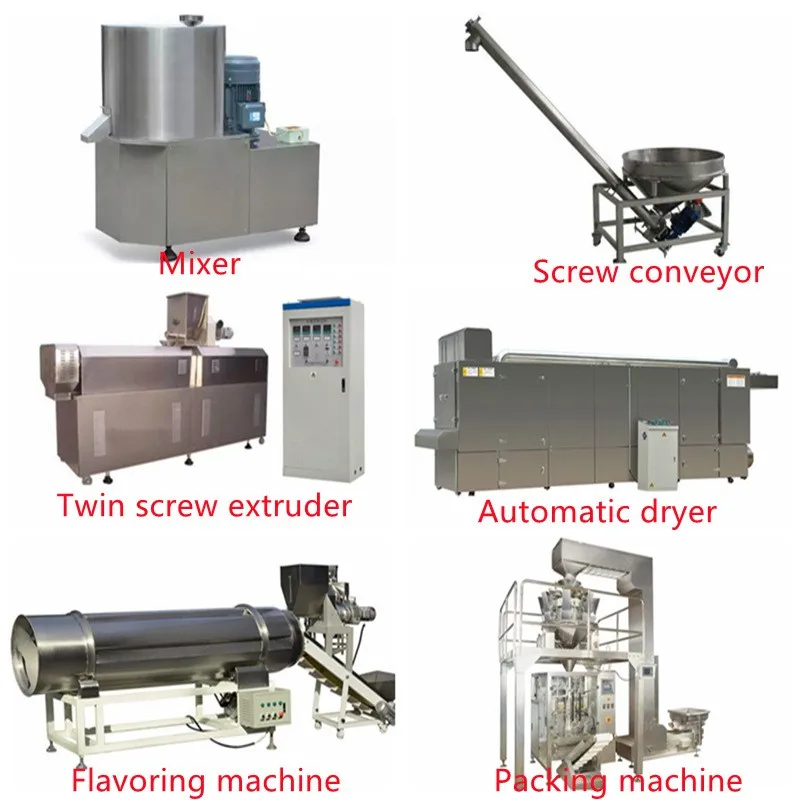

Flour mixer or Blender

Function: mixing corn powder with water.

Mixer makes the raw material which adding water and liquid chemical additive fully mixer equally . The machine mix the flour and prepares them ready to be used in the next step .
All parts adopt food grade stainless steel.It makes the powder raw materials, water and additives stirred and mix evenly by the high-speed rotation stirring wings in the stirring drum. Drum and stirring wings are made of stainless steel.

Spiral Conveyor

Function: transferring the Materials spirally from the corn blender to an extruder

Double Screw Extruder Or Twin Screw Extruder

Production Capacity: 120 – 1000 Kg/h

It consists of feeding system, extruding system, cutting system, heating system, controlling system and cooling system, cooling die system. Barrel adopts mold temperature controller for heating. Adopt famous brand bearing with strong capacity. modular screw can be assembled freely according to different material and products.

Depending on the type of raw materials, the amount of flavor added and also the thickness of the grain

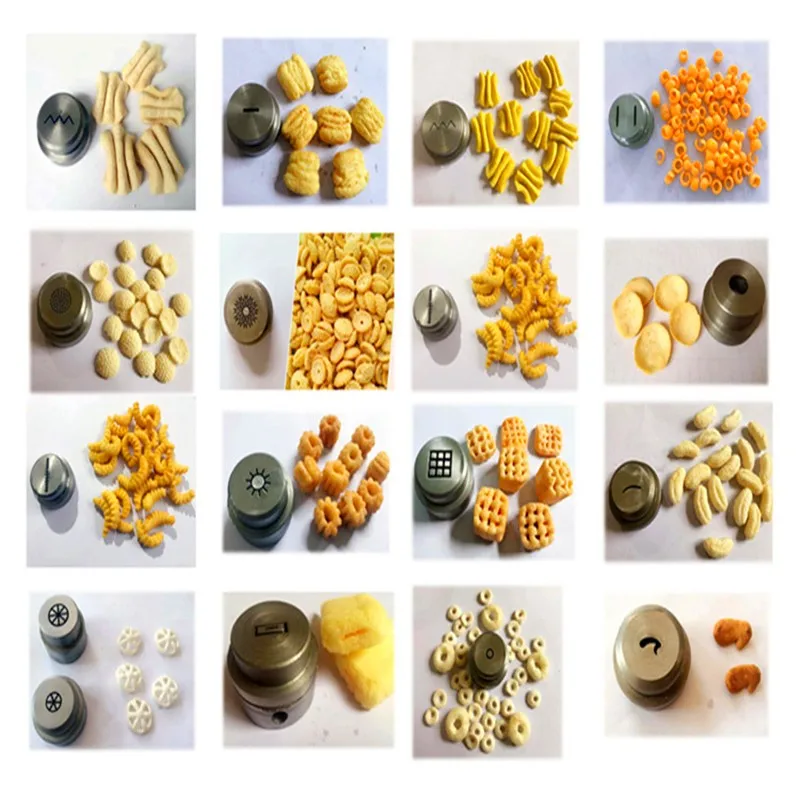

The extruder can produce up to 40 shapes of puff snack.

Air Conveyor or Air blower :

Function: transferring the Materials from the extruder to an oven.

Drying Oven:

Equipped with multi layers conveyor.

Function: roasting and drying corn chips and fully extracting humidity

Working System : customized

1-electricity system

2- Diesel system (Baltur Italy)

3- Gas system (Baltur Italy)

The heating source for this dryer can be electric, gas or steam. The material is stainless steel or can be customized. This dryer machine consists of rack system, combustion system, de-humidifier system, insulation system and controlling system. after flaking, it helps to remove the moisture on the surface of fortified rice. With vibrating motor, it will prevent sticky problem.

Flavour treatment or seasoning machine (Flavor mixing drum)

Function: spreading homogeneous mixture of oil and flavor on the outside of the chips.

Oil sprayer Or Oil & Flavor Blender

Function: mixing oil ( flavor) and spraying it inside flavor drum

Capacity: 50 Liters per tank

Puff Snack Automatic Packing Machine

Function: Suitable for packaging many different kinds of products; such as puffy snack, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware, dumplings, vegetable, fruits and sugar etc. which shape is roll, slice and granule.

Technical characteristics:

1.full-automatic weigh-form-fill-seal type. efficient and sample to use.

2.Use famous brand electric and pneumatic components, stable and long life circle.

3.Use superior mechanical components, reduce the wear out loss.

4.Easy to install film, auto correcting the excursion of the film.

5.Apply advanced operating system, easy to use and reprogramable.
