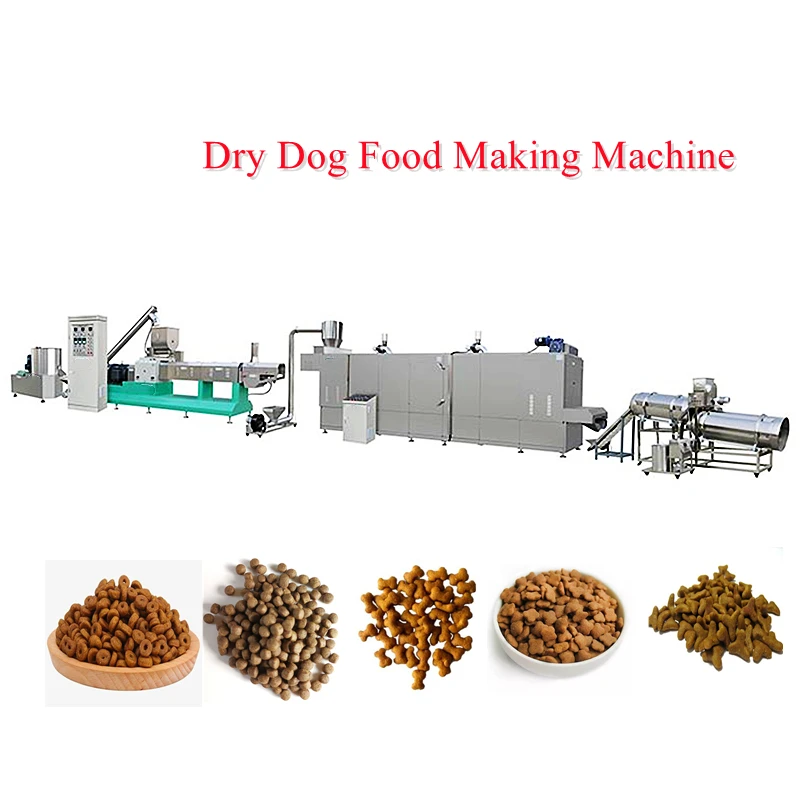

Dry Dog Food Making Machine
Competitive price Dry Dog Food Making Machine, extruder capacity 100 to 3000kg/h, OEM customized service.
Full Automatic Dry Dog Food Making Machine is a newly-designed line for improving market of pet food, which is developed successfully with our many years research experiences on food machinery. This Dry Dog Food Pellet Processing Line make pet food with novel shape, unique taste and color. It can meet with other needs of modern market by many superior characteristics, such as scientific nutrition formular and easy assimilation. And this line can also make the pet food cored filling, it will be more popular with modern pets.
Raw material:Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste etc.
Final products:dry dog food in different shapes.
Capacity: 120-150kg/h, 200-250kg/h, 400-500kg/h,1000-1200kg/h, 1500-1800kg/h,2500-3000kg/h.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB,Schneider,Mitsubishi,Delta,LG available
Burner brand:Baltur,RIELLO,Italy
Lead Time:10-15 days after receiving your deposit
Service & turnkey solution of VM MACHINE:
1). Free consultation service before, during, and after sales;
2). Free project planning and design services;
3). Free installation and commissioning of equipment until everything is functional;
4). Free management of equipments’ long distance shipping;
5). Free training of equipment maintenance and operating personally;
6). Free new production techniques and formulas;
7). Provide 1 year complete guarantee and life-time maintenance service;
8). Engineers available to service machinery overseas.
9). Provide technical exchanging
10). Provide English Version of Installation/Operation/Service/Maintenance Manual
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM65 Pet Food Production Line | 92KW | 64KW | 120-150kg/h | 17500×2000×2500mm |
VM70 Pet Food Production Line | 110KW | 78KW | 200-250kg/h | 19000×2000×2500mm |
VM85 Pet Food Production Line | 240KW | 180KW | 400-500kg/h | 23000×2500×2800mm |
VM90 Pet Food Production Line | 283KW | 190KW | 1000-1200kg/h | 30000×3000×3000mm |
VM95 Pet Food Production Line | 380KW | 266KW | 1500-1800kg/h | 34000×3000×3500mm |
VM120 Pet Food Production Line | 430KW | 301KW | 2500-3000kg/h | 39000×3000×4000mm |

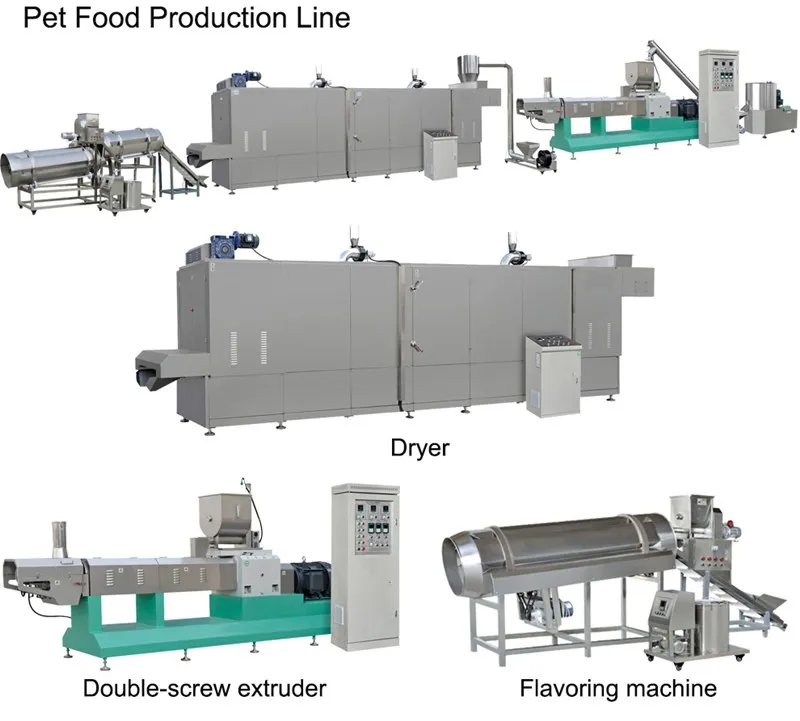

Dry Dog Food processing flow AND Equipment involved:
Processing flow :Mixing system; Extrusion system; Conveyoring system; Drying system;Flavoring and oil coating system;Cooling system; Packing system
Equipment involved:Mixer; Screw conveyor; Twin screw extruder; Air conveyor; Drying machine; Oil sprayer; Flavoring drum machine;Cooling conveyor;Automatic packing machine.
Video:
Seperate equipment description:
Grain grinder machine
Grain grinder machines are used in the food industry for size reduction of various food products. These machines are manufactured by several manufacturers in compliance with high standards, sanitary designs, as well as customizable features.
Flour mixer or Blender
Function: mixing raw material ingredients such as corn flour, wheat flour, fish meal,etc.
Spiral Conveyor
Function: conveyoring the Materials spirally from the mixer to twin screw extruder

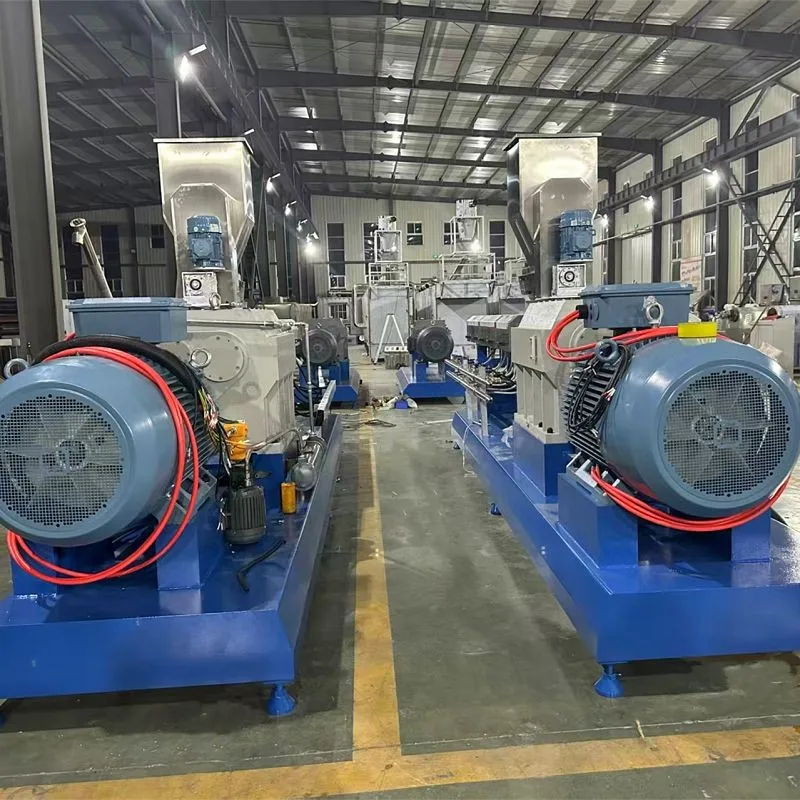

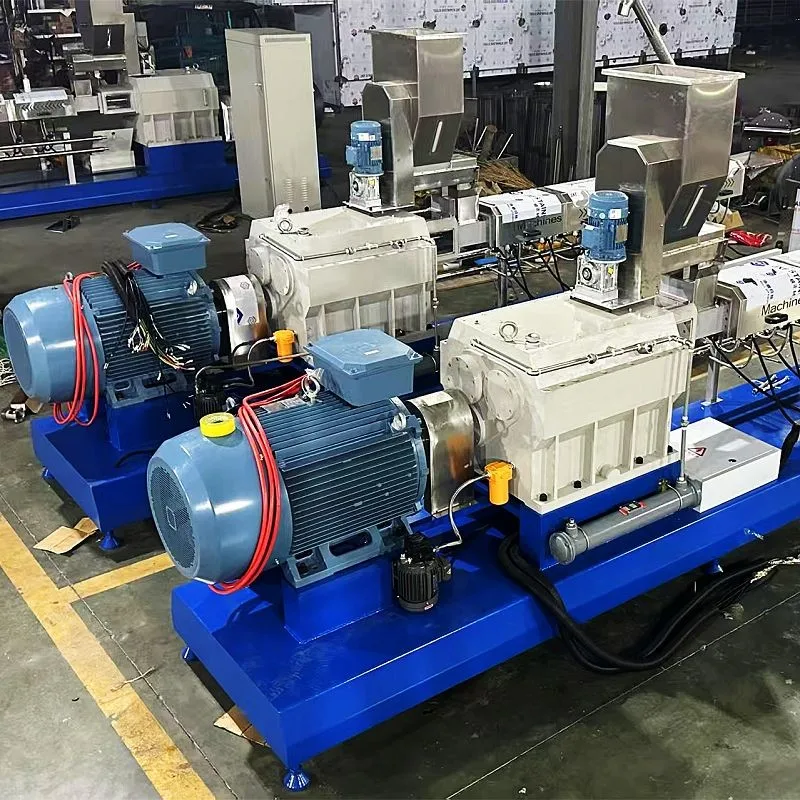

Double Screw Extruder Or Twin Screw Extruder
Production Capacity: 100 – 3000 Kg/h
Function:cooking the raw materials and make them to the required shape and size of the pet food pellets by mould. The Twin screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.
Features of fortified rice kernel double screw extruder:
1. Alloy screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
Air Conveyor or Air blower :
Function: conveyoring the pet food pellet from the twin screw extruder to an automatic dryer
Dryer machine:
Equipped with multi layers conveyor
Function: This automatic dryer machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as pet food,dog food,cat food,fish feed and others, for which the water contents are high and long drying time is requested. The machine owns the advantages of adjustable drying speed, high evaporation capacity and good product quality.
Main Features of the automatic dryer machine:
1.Air quantity, heating temperature, materials staying time and feeding speed can be adjusted in order to improve drying quality.
2.The equipment configuration is flexible. The mesh belt washing system and materials cooling system are available to use.
3. Most of the hot air is reused to realize energy saving.
4.The machine is equipped with a unique air distributor; it distributes the hot air to the dryer and ensures the quality of products is constant.
5. We can supply dryers of different heating ways, such as steam, electric, diesel, gas etc. We can customize the multi-layer dryer.
Oil sprayer
Function:mixing oil ( flavor) and spraying it indsie flavor drum.oil spraying amount and time can be adjusted.
Flavoring drum machine
Function:mixing oil ( flavor) and spraying oil on the surface of pet food through the rotating drum.The flavor powder can be adjusted.
Cooling machine
Function: reduce the temperature after drying.
Dog Food Automatic Packing Machine
Function:The automatic pet food packing machine is suitable to pack anomalous solid and the granule material ,such as puff snack food,pet food,dog food,cat food,fish food,bird food,as well as potato chips,crispy rice, jelly,candy,apple chips,dumpling, small cookie,dry fruit,melon seeds, roasted seeds and nuts, medical material , deep-frozen food ,etc.
This high performance automatic pet food packaging machine, can complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Features of Dry Dog Food Making Machine:
1.This pet food line has a wide range of applications, and it can be used to produce pellets for various types of pets such as dogs, cats, birds, and fish.
2.The process of Dry Dog Food Making Machine is normally including Raw material intake,First Weighing and dosing,First Grinding,First Mixing,Second Grinding,Second Weighing and dosing,Second Mixing,Optical sorting,Conditioning,Extruding, Cooking, Forming,Drying and Coating etc.
3.It adopts advanced touch screen and PLC control, simple operation and convenient maintenance, with user-friendly interface and clear instructions.
4.The frequency control feeding system of the pet feed pellet machine allows for precise control of the pellet forming process. This ensures that the pellets are produced at a consistent size and density, preventing wastage and ensuring maximum nutritional value.
