Electric Batch Fryer
Competitive price Electric Batch Fryer, Capacity 100-500kg/h, Compact structure, Fast delivery, OEM service.

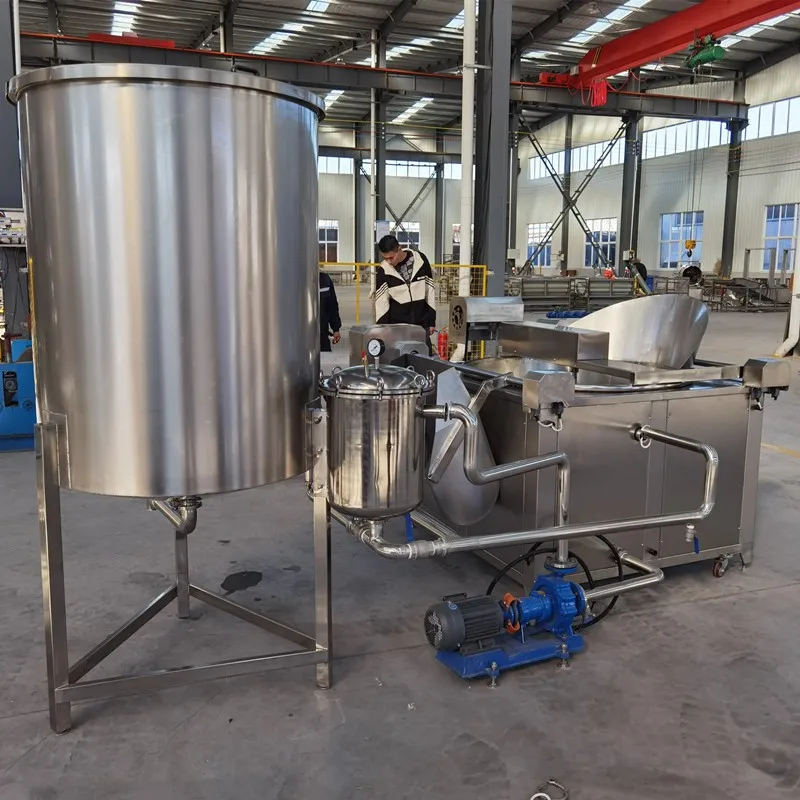

Automatic Electric Batch Fryer adopt with Oil Filter Structure, Electrical Heating, Electric Heating Tube Power, 320L Oil Capacity. The automatic continuous frying machine is widely used in restaurants and all food industries, and is also an indispensable machine for various snack processing production lines. It consists of automatic belt conveying system, automatic lifting system, oil filling system, oil filtering system and automatic temperature control system.
Machine material:Stainless steel 304 or as customer’s request
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Heating type | Model | Diamteter Frying Tank | Dimensions | Powder | Capacity | Output |
Electricity | VM-1000 | 1000mm | 1400*1200*1600mm | 36kw | 20kg/batch | 200kg/h |
VM-1200 | 1200mm | 1600*1300*1650mm | 48kw | 20kg/batch | 250kg/h | |
VM-1500 | 1500mm | 1900*1600*1700mm | 60kw | 50kg/batch | 300kg/h | |
LNG Gas | VM-1000 | 1000mm | 1700*1500*1700mm | 100000kcals | 20kg/batch | 200kg/h |
VM-1200 | 1200mm | 1900*1700*1750mm | 110000kcals | 30kg/batch | 250kg/h | |
VM-1500 | 1500mm | 2200*1900*1800mm | 120000kcals | 20kg/batch | 300kg/h |
Video
Application of Electric Batch Fryer:
Broad beans, green beans, peanuts and other nuts; puffed foods such as rice crackers and potato chips; noodle products such as glutinous rice sticks, cat ears, sha qi ma, and twists;Meat products such as meat cubes and chicken legs; soy products such as dried tofu and tofu soaking, etc. Automatic constant temperature, time and temperature can be adjusted.
Details of Electric Batch Fryer:
01. The network belt transmission adopts frequency conversion stepless speed regulation. The frying time is controllable.
02. The equipment is equipped with an automatic lifting system, the upper hood body and mesh belt can be lifted and lowered, which is easy to clean.
03. The bottom is equipped with a slag discharge system, and the generated residue can be discharged at any time.
04. The use of high-efficiency heat conductivity device, high energy utilization rate, conducive to reducing enterprise costs.
05. With electricity, coal or natural gas as heating energy, the whole machine is made of food-grade 304 stainless steel.
06. The upper and lower double-layer mesh belt is adopted, and the product is sandwiched between the double-layer mesh belt to avoid the product floating.
07. The equipment is equipped with an oil circulation filtration system, which continuously filters oil residue during the production process, reduces the acid price of oil, reduces the color of oil, and prolongs the service life of edible oil by more than 10 times.
Features of Electric Batch Fryer:
1.Continuous production, energy saving, labor saving
2.Automatic feeding and discharging, using lifting hopper, automatic feeding
3.Fan blades automatically feed, juice evenly, prevent sticking
4.Stainless steel material, reliable quality 5. One-touch switch, simple operation
We have different solutions for different demands:
1: Different machines for making potato chips or french fries.
2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output and workflow can be customized.
3: Semi automatic or fully automatic processing machines.
4: Electricity or gas, diesel heating source for blanching and frying machine.
5: The size of french fries and the thickness of potato chips are adjustable.
6: For french fries line, we have special equipment to remove the unqualified fries.
7: All machines are made of SUS304, Schneider electrical components and Siemens brand motor.
8: With special designed fryer, quick heating and energy saving, enabled good performance.
