Fish Feed Dryer
Competitive price Fish Feed Dryer,Dryer Capacity 100-2000kg/h,Electric heating or LPG,diesel,steam heating,OEM service.

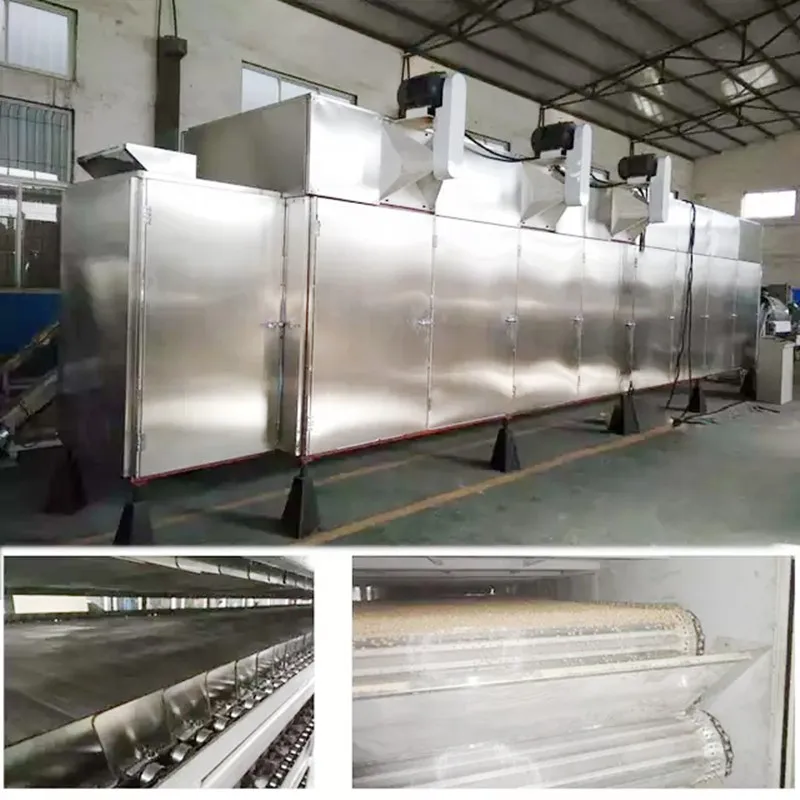

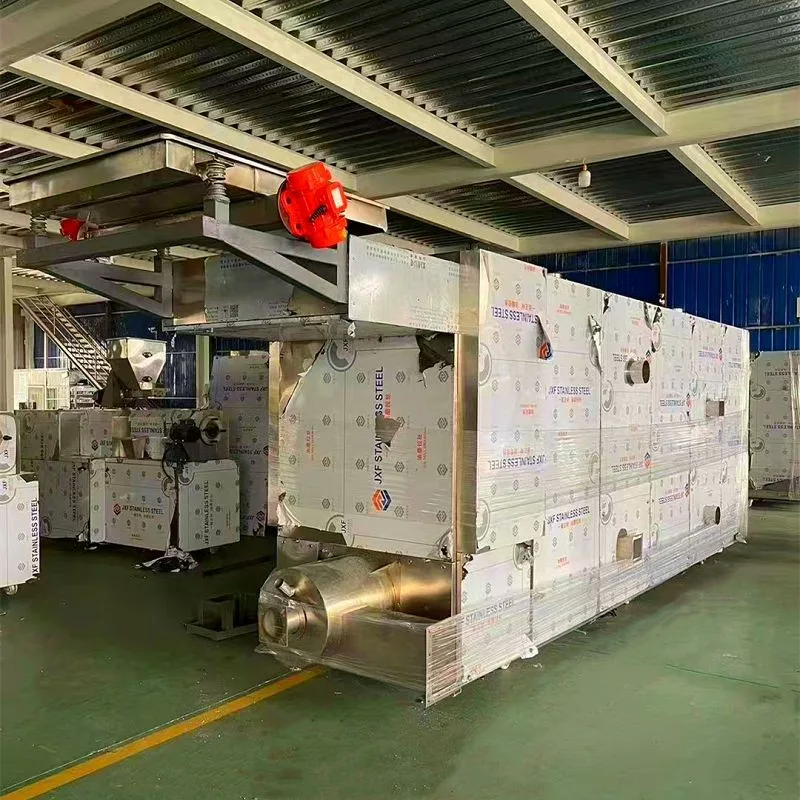

Fish feed pellets from the fish feed extruder are moist at high temperatures, so they can not be transported and stored immediately and require to be dried first.The Fish Feed Dryer is a specially designed machine to remove pellet moisture and heat generated in pellet production. The pellet drying process is: placing the material on the conveyor belt with the accompanying motion by contact with hot air in the tunnel to drying. Uniform pellet drying, flexible configuration, and unique air dividing device, dryers are offered with three models for your drying demands!
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
Burner brand:Baltur,Italy
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Model | VM5-3 | VM5-5 | VM8-5 | VM8-7 | VM11-7 |
Capacity(KG/H) | 100-200 | 200-300 | 300-400 | 400-600 | 800-1000 |
Layer quantity | 3 | 5 | 5 | 7 | 7 |
Belt width(mm) | 1000 | 1000 | 1000 | 1000 | 1000/1200 |
Belt length/layer(mm) | 5000 | 5000 | 8000 | 8000 | 11000 |
Electric heating Power(KW) | 36 | 54 | 70 | 90 | 120 |
Temperature | 50-120℃ | 50-120℃ | 50-120℃ | 50-120℃ | 50-120℃ |
Drying time(min) | 6-30 | 8-45 | 10-50 | 10-60 | 15-120 |
Dimension(M) | 5.5*1.2*1.8 | 5.5*1.2*2 | 8.5*1.2*2 | 8.5*1.2*2.2 | 11.5*1.2*2.2 |
We provide different heating method such as Gas heating, LPG heating, diesel heating or steam heating, and different capacity customized service.
Application of the Fish Feed Dryer:
Multi-layers Belt dryer is used for mass production of continuous drying equipment for the drying of the sheet, strip pellet material with better ventilation property, especially for the materials cannot bear high temperature such as dehydrated vegetables, Chinese herbal pieces of high moisture content. Belt driers have many advantages, such as fast drying rate, high evaporation strength, good product quality; cake type of paste materials, wet granulation can also be dried.
Features of Fish Feed Dryer:
1.The equipment’s configuration is very flexible.
2.Simple structure, easy installation and maintenance.
3.Materials will not be vibrated or impacted during the drying process, so the pellets will keep intact.
4.Air quantity, heating temperature, materials staying time, and feeding speed can be adjusted to achieve the best drying effect.
5.Stainless Steel Insulation Layer,The equipment’s primary point of contact is constructed of type 304 stainless steel, and an insulating layer made of thicker stainless steel is used.
6.Internal Air Circulation,The dryer uses a cross-circulation air path design inside to drive hot air to penetrate drying materials and increase drying efficiency.
7.Control Panel, Control of switches, equipment parameters, and centralized control are all located on the control panel.
