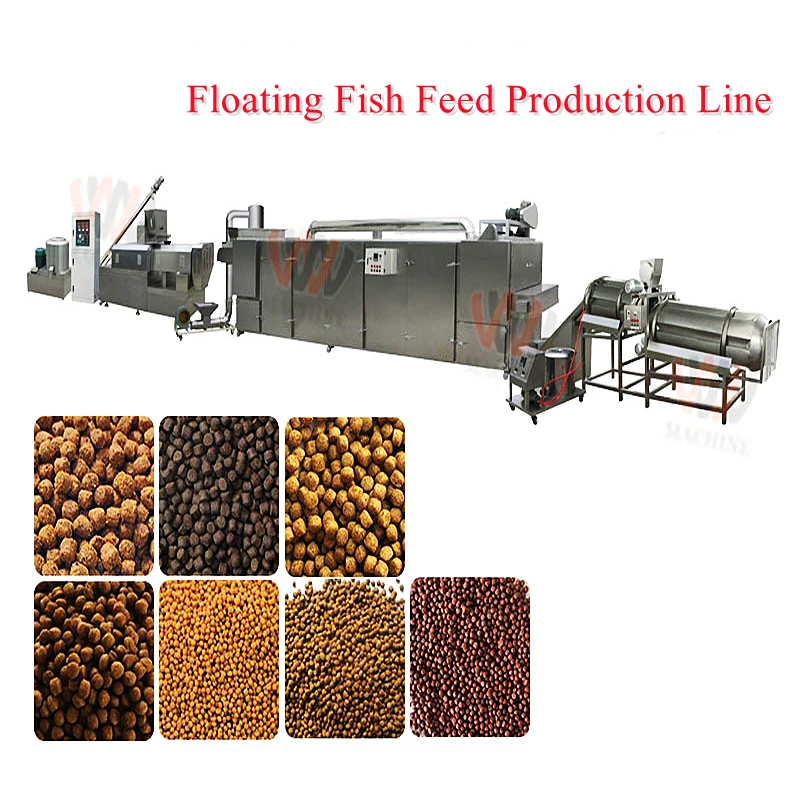

Floating Fish Feed Production Line

Processing flow :Crushing system;Mixing system; Extrusion system; Conveyoring system; Drying system;Flavoring and oil coating system;Cooling system; Packing system

Equipment involved:Crusher;Mixer; Screw conveyor; Twin screw extruder; Air conveyor; Drying machine; Oil sprayer; Flavoring drum machine;Cooling conveyor; Automatic packing machine.

Crusher machine

Animal feed crusher machine is a kind of processing machine which is specialized used for crushing materials by the collision between the high-speed hammer and materials. The raw materials was fed into hammer mill are crushed to appropriate powder for the feed mixer processing. For realizing different processing effects, you just need to change the screen with different size holes. With competitive price, simple structure and high efficiency, fodder mill mainly used in farms.It can be used independently or be the first part of complete feed pellet production line.

Flour mixer or Blender

Function: mixing raw material ingredients such as corn flour, wheat flour, fish meal,etc.

Spiral Conveyor

Function: conveyoring the Materials spirally from the mixer to twin screw extruder

Double Screw Extruder Or Twin Screw Extruder

Production Capacity: 100 – 3000 Kg/h

Function:cooking the raw materials and make them to the required shape and size of the pet food pellets by mould. The Twin screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.

Features of floating fish feed double screw extruder:

1. Alloy screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.

2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.

3. Gearbox with automatic lubrication function, extending gear life.

4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.

5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.

Air Conveyor or Air blower :

Function: conveyoring the floating fish feed pellet from the twin screw extruder to an automatic dryer

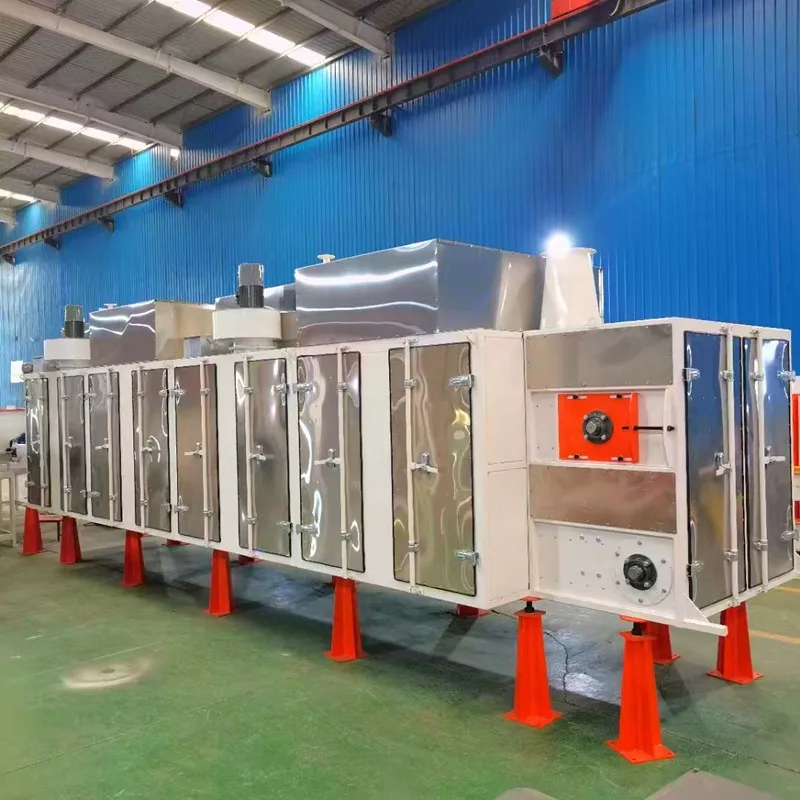

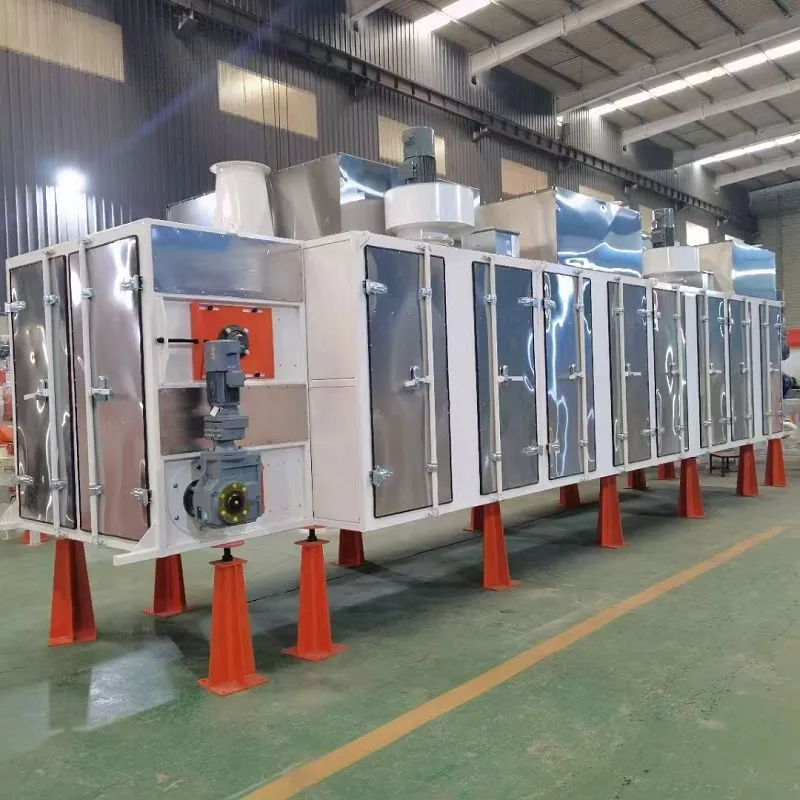

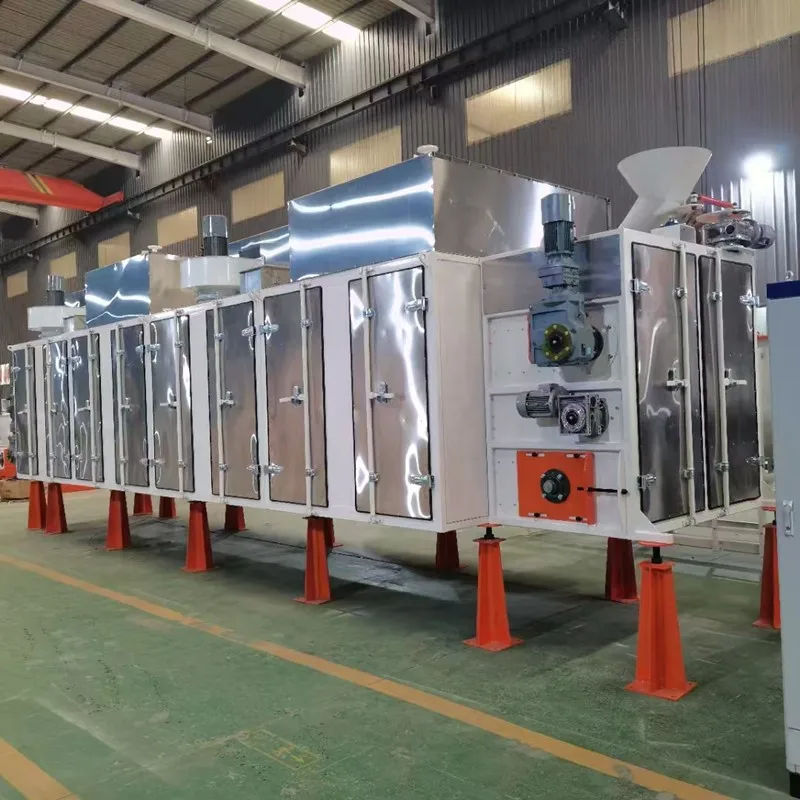

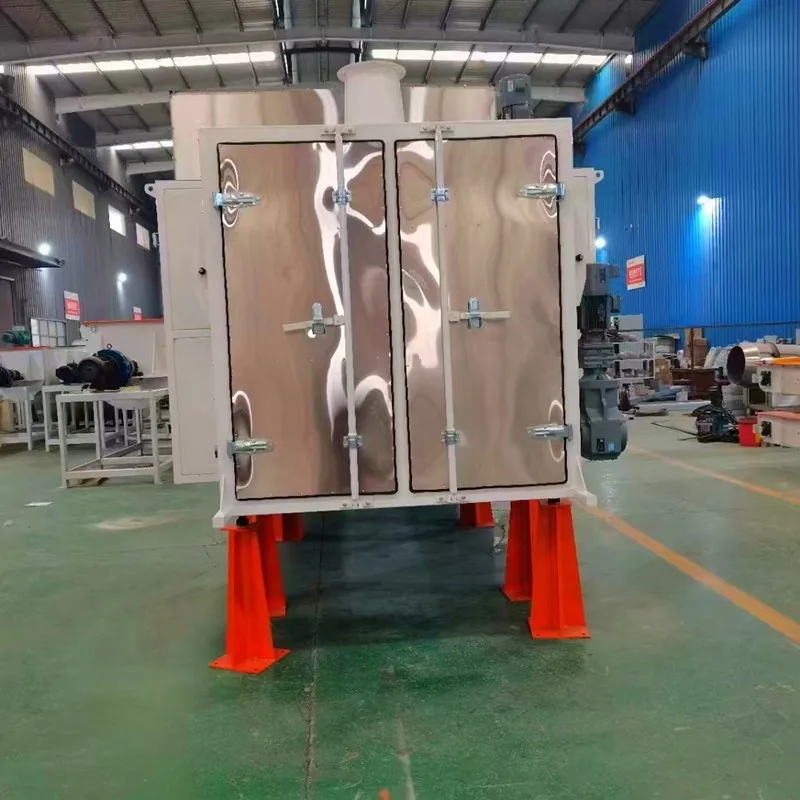

Dryer machine:

Equipped with multi layers conveyor

Function: Fish feed dryer machine is usually used in combination with fish feed extruder in the fish feed pellet line. Fish feed pellets are transported by the conveyor from fish feed extruder to the pellet dryer machine, then it will be drying on the mesh belt which is made of stainless steel. Pellets from extruder may content moisture around 15~20% with high temperature ,if the user wanna pack fish feed pellet for proper storage and marketing handling.Those pellets must be cooled and dried. Fish feed dryer machine is movable with multi-layer structure, which makes our dryer fast-drying & high-efficiency.The machine is suitable for the materials such as pet food,dog food,cat food,fish feed and others, for which the water contents are high and long drying time is requested. The machine owns the advantages of adjustable drying speed, high evaporation capacity and good product quality.

Main Features of the automatic dryer machine:

1.Air quantity, heating temperature, materials staying time and feeding speed can be adjusted in order to improve drying quality.

2.The equipment configuration is flexible. The mesh belt washing system and materials cooling system are available to use.

3. Most of the hot air is reused to realize energy saving.

4.The machine is equipped with a unique air distributor; it distributes the hot air to the dryer and ensures the quality of products is constant.

5. We can supply dryers of different heating ways, such as steam, electric, diesel, gas etc. We can customize the multi-layer dryer.

Oil sprayer

Function:mixing oil ( flavor) and spraying it indsie flavor drum.oil spraying amount and time can be adjusted.

Flavoring drum machine

Function:mixing oil ( flavor) and spraying oil on the surface of pet food through the rotating drum.The flavor powder can be adjusted.

Cooling machine

Function: reduce the temperature after drying.

Floating fish feed Automatic Packing Machine

Function:The automatic pet food packing machine is suitable to pack anomalous solid and the granule material ,such as puff snack food,pet food,dog food,cat food,fish food,bird food,as well as potato chips,crispy rice, jelly,candy,apple chips,dumpling, small cookie,dry fruit,melon seeds, roasted seeds and nuts, medical material , deep-frozen food ,etc.

This high performance automatic pet food packaging machine, can complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.

1.SLG Series extruder is specialized for production of high rank floating and sinking aqua feed,aquarium fish feed,pet food,etc.

2.The feeding adopts forced feeding to ensure that there is no bridging in the bin.

3.The cutter is a movable cutter seat, which adopts frequency conversion control and can adjust the particle length.

4.Both feeding and discharging are frequency-controlled, feeding is uniform, and discharging can adjust particle length.

5.Host gear box with oil pump cooling system and lubrication system.

6.Double-screw structure with excellent self-cleaning ability to restart or replace the material varieties without cleaning machine boring and screw.

7.Screw and screw barrel are all made of special materials, wear resistance, bear greater pressure.

8.Killing germs by high temperature and high pressure during the process to ensure the safety and health of feed products.
