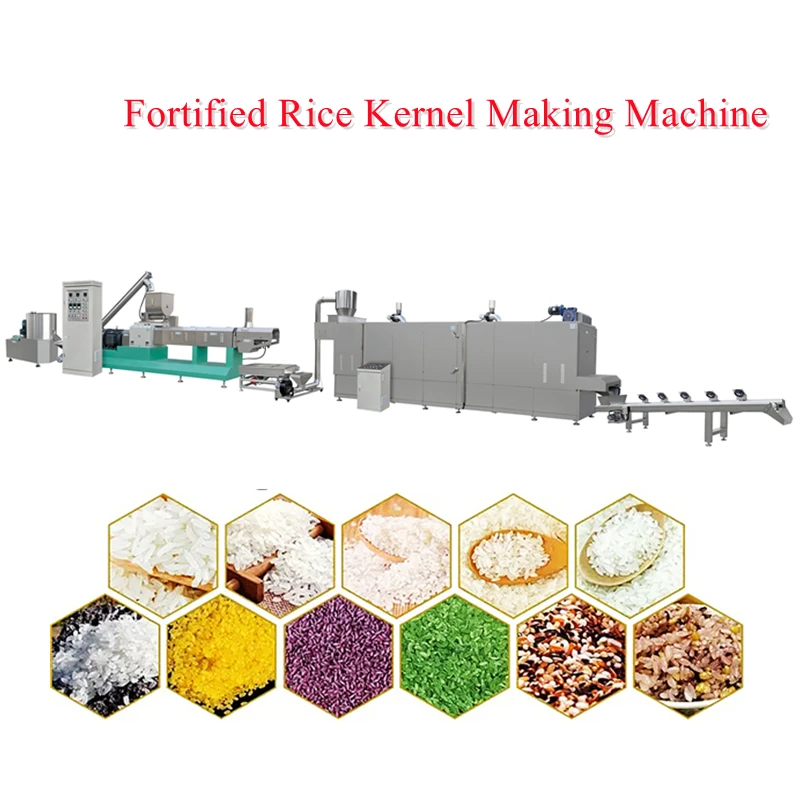

Fortified Rice Kernel Making Machine
Competitive price Fortified Rice Kernel Making Machine, capacity 100-1000kg/h, ready stock. customized service.
This Automatic Fortified Rice Processing Line adopt twin-screw extrusion technology to cook the material and then cut into the rice shape through a special mould. Then, it is dried at low temperature to remove water, fix the internal molecular structure of rice, prevent retrogradation, and packaged after cooling. This extrusion technique effectively avoids the loss of nutrients, making it a nutritious fortified rice and increasing the added value of the product.
Raw material:broken rice or other grain;water
Final products：fortified rice,artificial rice,Fortified Rice Kernel
Capacity: 120-150kg/h, 300-400kg/h, 600-700kg/h,700-800kg/h,1000-1200kg/h, 1500-2000kg/h.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
Burner brand:Baltur,Italy
Lead Time:10-15 days after receiving your deposit
Service & turnkey solution:
A. consultation service before, during, and after sales;
B. project planning and design service;
C. debugging of equipment until everything is functional;
D. management of equipments’ long distance shipping from seller’s factory to the named place by buyer;
E. training of equipment maintenance and operating personally;
F. new production techniques and formulas;
G.provide 1 year complete warranty and life-time maintenance service.
roduct Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM70 Fortified Rice Production Line | 126KW | 88KW | 120-150kg/h | 15000×1500×2500mm |
VM65 Fortified Rice Production Line | 213KW | 150KW | 300-400kg/h | 22000×2000×2500mm |
VM75 Fortified Rice Production Line | 258KW | 180KW | 600-700kg/h | 23000×2500×2800mm |
VM78 Fortified Rice Production Line | 260KW | 182KW | 700-800kg/h | 23000×2500×2800mm |
VM85 Fortified Rice Production Line | 305KW | 213KW | 1000-1200kg/h | 28000×3000×3800mm |
VM95 Fortified Rice Production Line | 378KW | 265KW | 1500-2000kg/h | 30000×3500×3800mm |
Video
Fortified Rice Kernel processing flow AND Equipment involved:
Processing flow :Broken rice grinding;Mixing;Conveyoring;Extrusion;Conveyoring;Drying;Cooling;
Packing.
Equipment involved: Raw material grinder; Mixer; Screw Conveyor; Twin screw extruder; Air Conveyor; Multi layer dryer; Cooling Conveyor; Automatic packing machine
Separate equipment description:
Rice grinder machine
Rice grinder machines are used in the food industry for size reduction of various food products. These machines are manufactured by several manufacturers in compliance with high standards, sanitary designs, as well as customizable features.
Flour mixer or Blender
Function: To mix the raw materials evenly, fast speed, no leakage.
Spiral Conveyor
Function: transferring the Materials spirally from the corn blender to an extruder

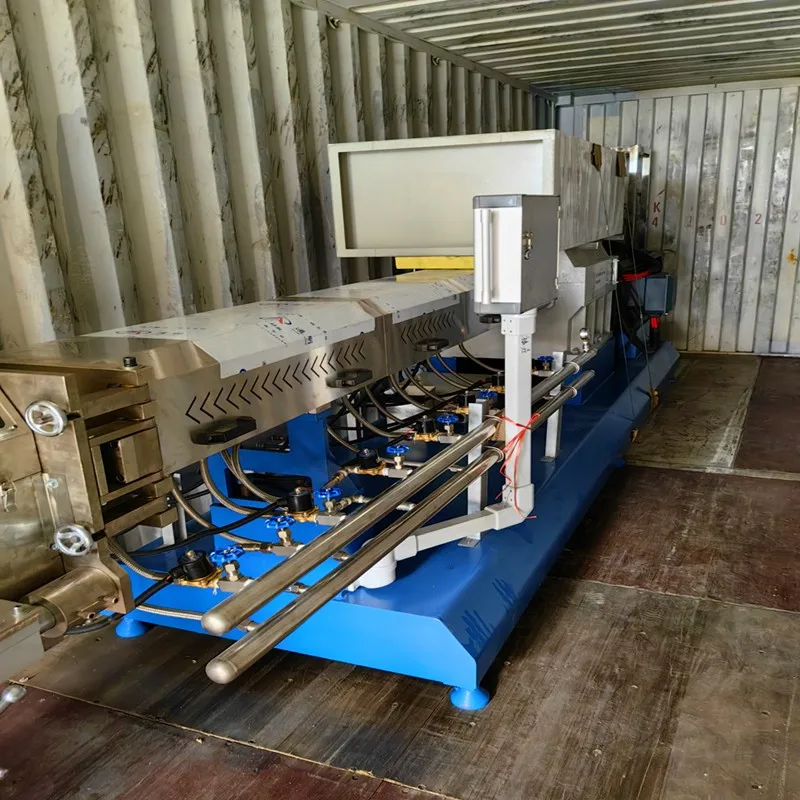

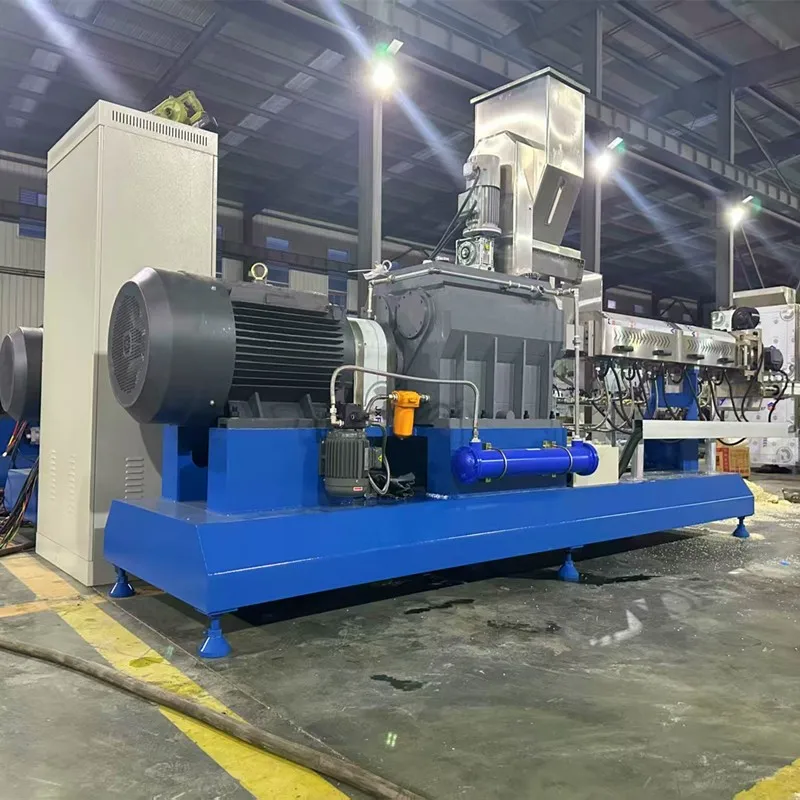

Double Screw Extruder Or Twin Screw Extruder
Production Capacity: 100 – 1000 Kg/h
Features of fortified rice kernel double screw extruder:
1. Alloy screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
Air Conveyor or Air blower :
Function: transferring the Materials from the extruder to an oven.

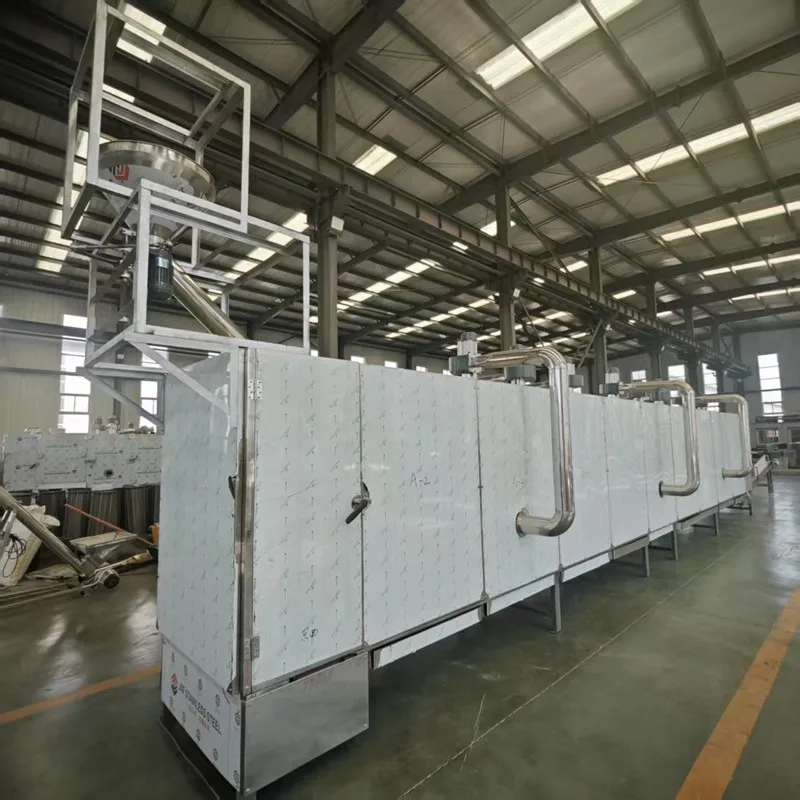

Dryer machine:
Equipped with multi layers conveyor
Function: roasting and drying corn chips and fully extracting humidity
Working System : customized
1-electricity system
2- Diesel system (Baltur Italy)
3- Gas system (Baltur Italy)
Cooling machine
Function: reduce the temperature after drying.
Fortified Rice Kernel Automatic Packing Machine
Function:To pack the fortified rice kernel with required weight.
Flowing Process:Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
