Kurkure Packing Machine
Competitive price Corn Puff Extruder Machine,capacity 100-3000kg/h,different mould,OEM service.

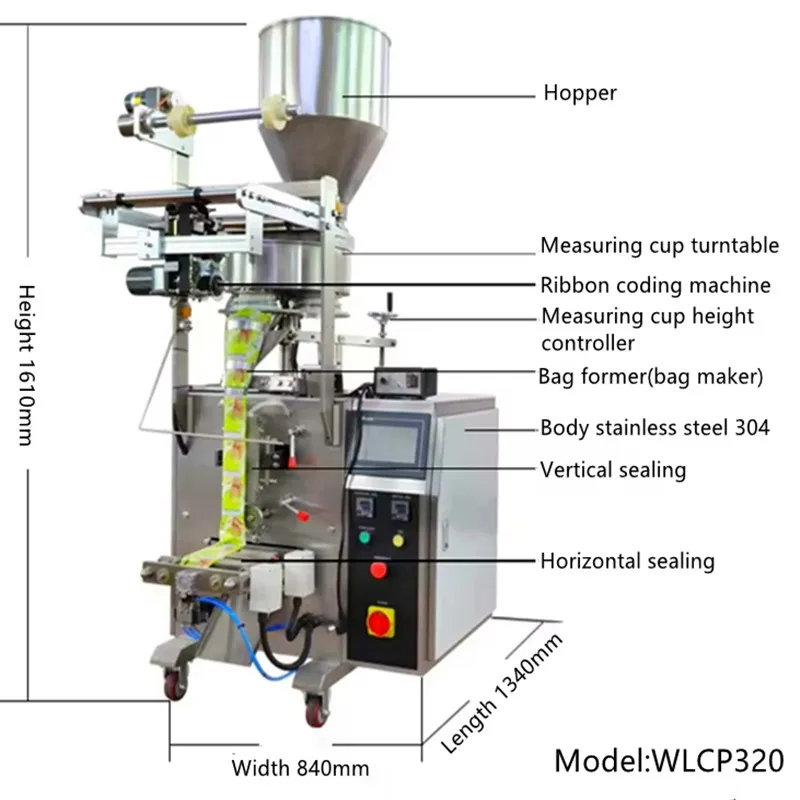

The Kurkure Packing Machine integrates mechanical and electrical integration, microcomputer control optical tracking correction system,equipped with high-precision stepping motor, the exact same position of each packaging bag pattern control system to complete synchronization, length fixing, orientation and speed of the machine. The machine bag making, counting, filling, cutting,cutting fixed packet synchronization inflatable, coding, output product series of actions are done automatically.
Machine material:Stainless steel 304
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Model | VM320 | VM420 |
Measurement | measuring cup | measuring cup |
Measuring range | 50-500ml | 500-1000ml |
Film width(Bag former) | Max.320mm | Max.420mm |
Bag width | 30-150mm | 30-200mm |
Bag Length | 50-200mm | 50-300mm |
Packing speed | 10-60bag/min | 5-55bag/min |
Power Specifications | 2.2KW,220V,50HZ, Single Phase | 2.6KW,220V,50HZ, Single Phase |
Machine Weight | 200kg | 230kg |
Overall dimensions | (L)1340x(W)840x(H)1610mm | (L)1450x(W)880x(H)2150mm |
Shape of the seal | back sealing(standard), option for three side seal, four side seal (One machine do one shape sealing) | |
Packaging Materials | Aluminum film and laminated film/OPP/CPP.OPP/CE.MST/PE/PET/PE | |
Video
Application of the Kurkure Packing Machine:
This Automatic Kurkure Packing Machine is equiped with the PLC controller which has the advantages such as setting the length of the bag. And this machine adopts automatic tracking color code, which can intelligently eliminate false color standard, automatically complete the positioning and fixed length of the packaging bag.
Features of Kurkure Packing Machine:
1. Complete the filling, measuring, sealing, cuuting, counting, batch number printing automatically.
2. Chinese and English display control system, set the parameters in the control panel.
3. Full stainless steel frame.
4. Stepper motor control makes measuring accuracy high, no need to adjust any part to change the bag length.
5. Works stable with low error and low noise.
6. If the film with color mark, the sensor can detect it.
7. This packing machine button switch + full digital display. The operation is stable and reliable.
8. This chips packing machine computer control, the system uses stepping motor subdivision technology, the bag making precision is high, the error is less than 1 mm.
9. Fully automatic tracking color code, intelligently eliminate false color standard, automatically complete the positioning and length of the packaging bag.
10. Heat sealing double-channel temperature control, intelligent temperature control, good heat balance, guarantee sealing quality, suitable for a variety of packaging materials.
