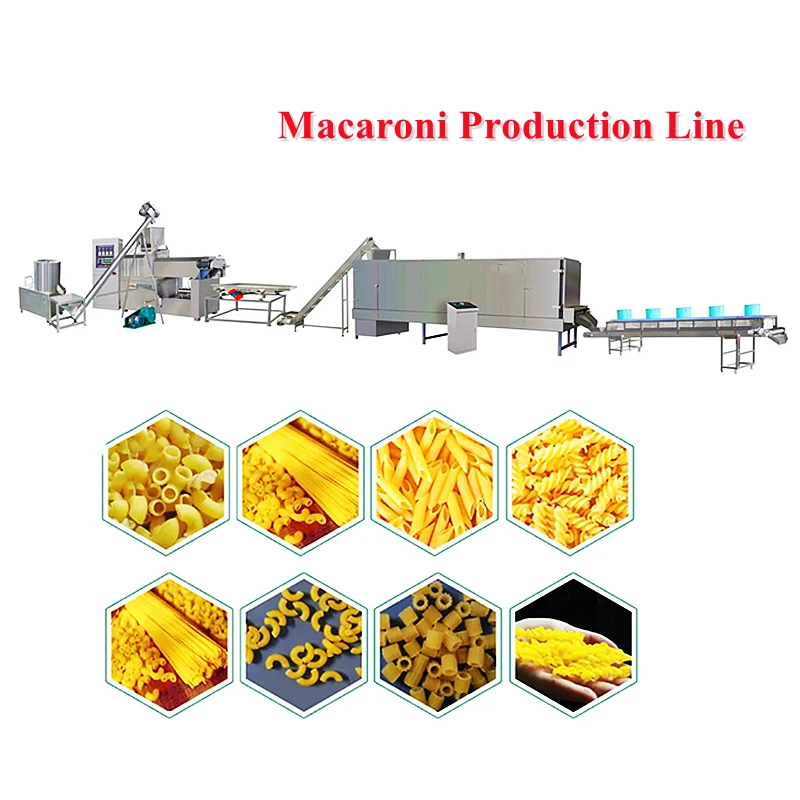

Macaroni Production Line
Competitive price Macaroni Production Line, Extruder capacity 100 to 300kg/h, Fast shipping. Customized service.
This automatic Macaroni Production Line is the high tech single-screw extruding machines through extruding ,cooking; curing, shaping, the pasta macaroni can be different shapes like shell, spiral, square tube, circle tube, and so on. After drying, the pellet needs frying to get expanded. If only for steaming type, just need drying for good.The feature of pasta macaroni manufacturing line is fully automatic controling system, various shapes’ adjusting,wide application for pasta macaroni production , 100kg/h is our basic capacity, we can make 300kg/h; or more output for your needs.
Raw material:Main material is drum wheat flour or semolina wheat flour;water
Final products:short cut pasta,Tubular,Screw,Shell,etc.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB,Schneider,Mitsubishi,Delta,LG available
Burner brand:Baltur,RIELLO,Italy
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM100 Pasta Production Line | 115KW | 81KW | 120-150kg/h | 23000×1500×2500mm |
VM130 Pasta Production Line | 230KW | 160KW | 250-300kg/h | 25000×1500×2800mm |
Video
Macaroni processing flow AND Equipment involved:
Processing flow :Mixing system; Extrusion system; Cutting system;Conveyoring system; Drying system; Packing system
Equipment involved:Mixer; Spiral conveyor; Single screw extruder; Cutter;Belt conveyor; Drying oven; Automatic packing machine.
Seperate equipment description：
Flour mixer or Blender
Function: mixing raw material ingredients such as drum wheat flour, water,etc.
Spiral Conveyor
Function: conveyoring the Materials spirally from the mixer to single screw extruder.
Spiral conveying with motor as power to ensure convenient and fast feeding.
Single Screw Extruder
Production Capacity: 100 – 300 Kg/h
Function:cooking the raw materials and make them to the required shape and size of pasta by mould. The Single screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.
Features of macaroni single screw extruder:
(1)Single-screw Extruder mainly consist of feeding system, extruding system, cutter system heating system,driving system, and controlling system.
(2)Feeding system, extruding system and cutting system all adopt frequency-conversion timing to gain powerful drive, stable perform, and electricity saving.
(3)Screw, machine barrel, moulds all adopt circulating cooling system to ensure that during extruding, temperature of raw materials can keep steady.
(4)Due to being processed by special technique, the screw is abrasion-endurable, fatigue-resistant and durable.
Belt conveyor :
Function: conveyoring the pasta from the single screw extruder to an automatic dryer
Dryer machine:
Equipped with multi layers conveyor
Function: This automatic dryer machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as pasta,macaroni, noodles and other product, for which the water contents are high and long drying time is requested. The machine owns the advantages of adjustable drying speed, high evaporation capacity and good product quality.
Main Features of the automatic dryer machine:
Equipped with 4 hot air circulating systems
(2)Dryer is compact, has large dry area and a small superficial area. It also features small scale of heat elimination and high thermal efficiency.
(3)Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.
(4)The speed of mesh belt conveyor is adjustable. The drying period for food in the oven can be adjusted.
(5)The automatic temperature control system makes it possible to set the temperature according to your needs.
Cooling machine
Function: reduce the temperature after drying.

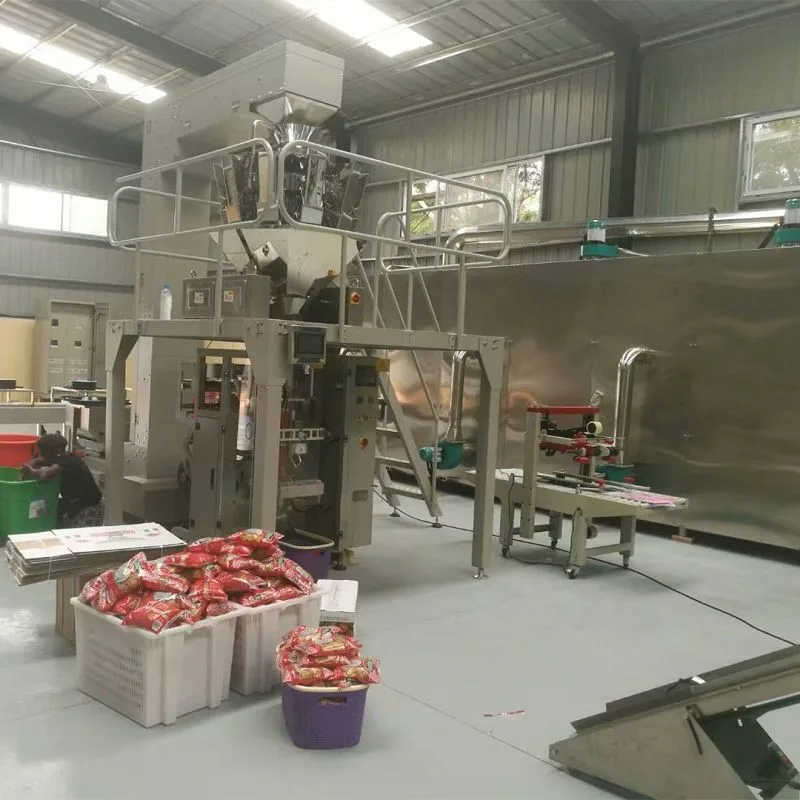

Macaroni Automatic Packing Machine
Function:The automatic macaroni packing machine is suitable to pack anomalous solid and the granule material ,such as Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware and medicine such particle, platy, strip and irregular shape.
This high performance automatic macaroni packaging machine, can complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Main Features of the macaroni packing machine:
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
