Maize Puff Making Machine
Competitive price automatic maize puff making machine. Double screw extruder 100-1000kg/h. OEM service.
Industrial maize puff making machine is used for making various of puff snacks, with maize as the raw material (the processing of different materials are separately under different moulds). The main machine of this line is Twin Screw extruding machine, the puffs produced from above machine is the semi-finished products. After the final processes of shaping and seasoning, the products become extremely even and crisp. The whole processing is without any frying. This production line is a good quality corn puffed extruder snack machine.
Raw material:Corn, rice, wheat, oat, barley powder,sugar,salt,favor such as coco powder,cheese;
water
Final products：Variety shapes are available for corn curls,cheese ball, tube, stick, ring,fruit loop, star, wheel and flower and heart shape
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM65 | 92KW | 64KW | 120-150kg/h | 17500×1500×2500mm |
VM70 | 130KW | 90KW | 200-250kg/h | 19000×1500×2500mm |
VM85 | 240KW | 167KW | 300-500kg/h | 23000×1500×2500mm |
VM65 | 150KW | 100KW | 250-300kg/h | 22000×1500×2500mm |
VM75 | 185KW | 132KW | 300-500kg/h | 23000×2000×2800mm |
VM85 | 296KW | 220KW | 800-1000kg/h | 30000×3000×3800mm |
Video

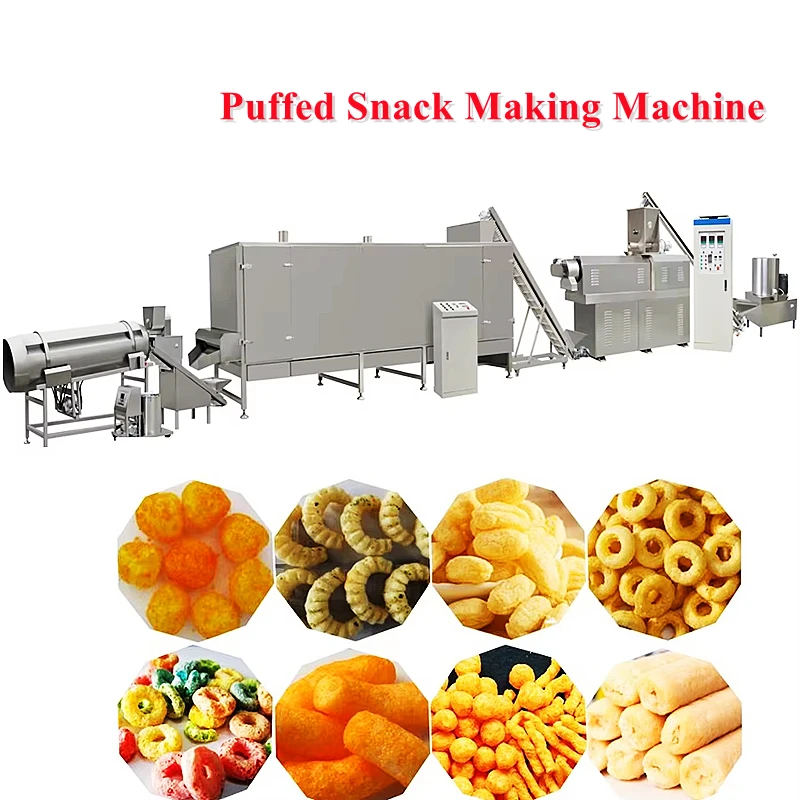

Puff Snack Processing Flow And Equipment Involved:
Processing flow :Mixing system; Extrusion system; conveyoring system; Drying system; Flavoring system; Packing system
Equipment involved:Mixer; Spiral conveyor; Double screw extruder; Air conveyor; Drying oven; Flavor mixing drum; Oil sprayer; Automatic packing machine.

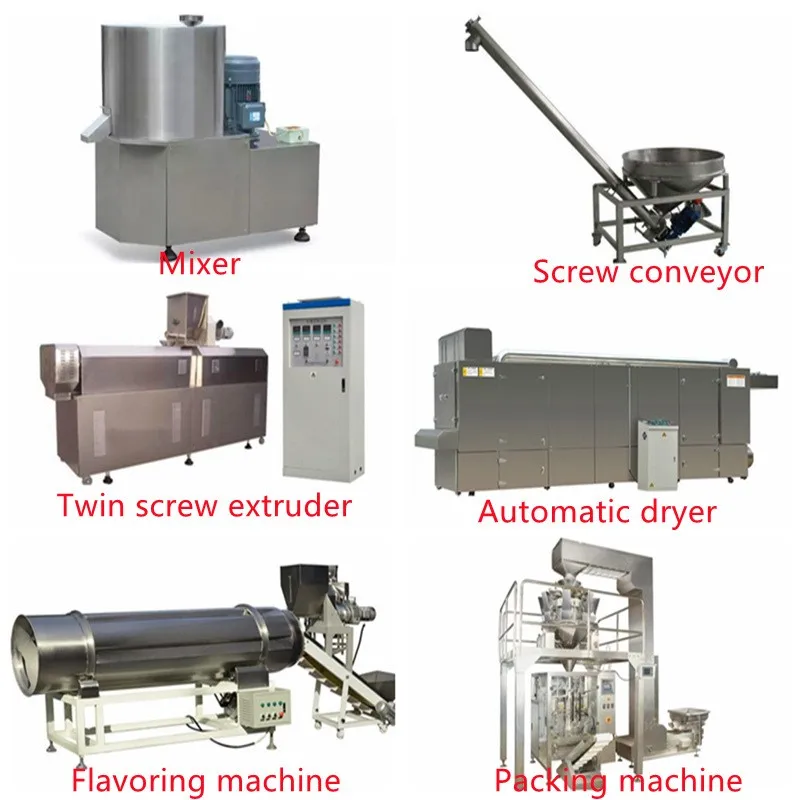

Processing Equipment list of Maize Puff Making Machine：
1.Flour Mixer: Mix raw materials like corn flour, wheat flour, and rice flour, etc. with a certain amount of water evenly and sufficiently.
2.Screw conveyor: Feed the mixed materials to the feeding hopper of food extruder machine.

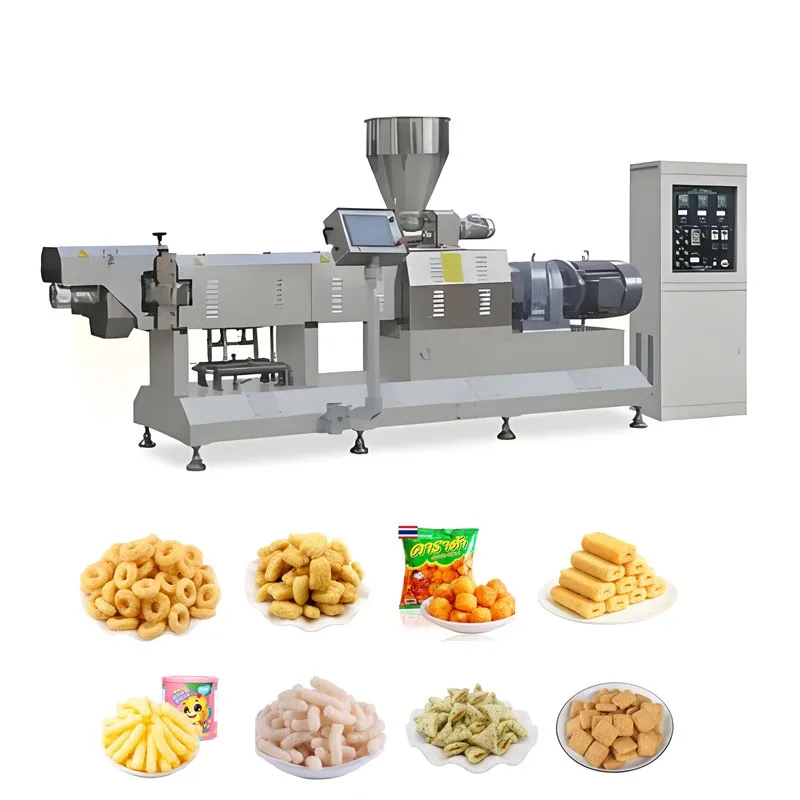

3.Twin Screw Extruder: Raw materials fall into the extruding system from the feeding hopper. Under the function of high temperature and high pressure, the products are squeezed out. We can set different configurations for making different products.
4.Air Conveyor: Take advantage of the wind power, the materials are conveyed to the oven. Configure different air conveyors according to the different products we need.
5.Multi-layer Dryer: The dryer in the snacks manufacturing plant is mainly the electric type. Temperature is adjusted through the control cabinet from room temperature to 120 degree. There is a double-layer stainless mesh bag inside. The baking time is adjusted according to the speed. The oven of three-layer, five-layer, and seven-layer for your selection.
6.Oil sprayer:The oil sprayer spray oil on the surface of snack food through the rotating drum.The oil spraying amount and time can be adjusted.
7.Automatic Flavoring Line: There are an octagonal drum, single drum, and double drum flavoring. According to the capacity and product characteristics, we also have oil spraying, sugar spraying and coating equipment for your choice.
8.Automatic packing machine:This high performance automatic sanck food packaging machine, can complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Advantage Of Maize Puff Making Machine:
1. Easy to control by automatic production line.
2. Optional fillings for cooking makes it easy to prepare all of the raw materials.
3. Using the corn or rice mash as the raw material, having the benefit of easy to getting and low-budget.
4. No wasting from being fully utilized of the raw materials.
5. Adjustable feeding speed according to the production requirements.
6. Variety of different shape product by replacing mold easily.
7. The cutting device of the extruder has a cover to ensure safe operation.
8. Adjustable baking or drying temperature and time.
9. Equipped with the temperature display and control device.
10. Insulation device to improve thermal efficiency.
11. Optional round and rectangular product cutting machine according to the requirements.
12. The powder sprinkler feeds the seasonings with a screw, and the amount of powder can be adjusted according to the requirements.
13. Integrated, safe and hygienic seasoning drum.
14. The equipment of the whole production cycle is made of stainless steel which is hygiene and easy to clean.
