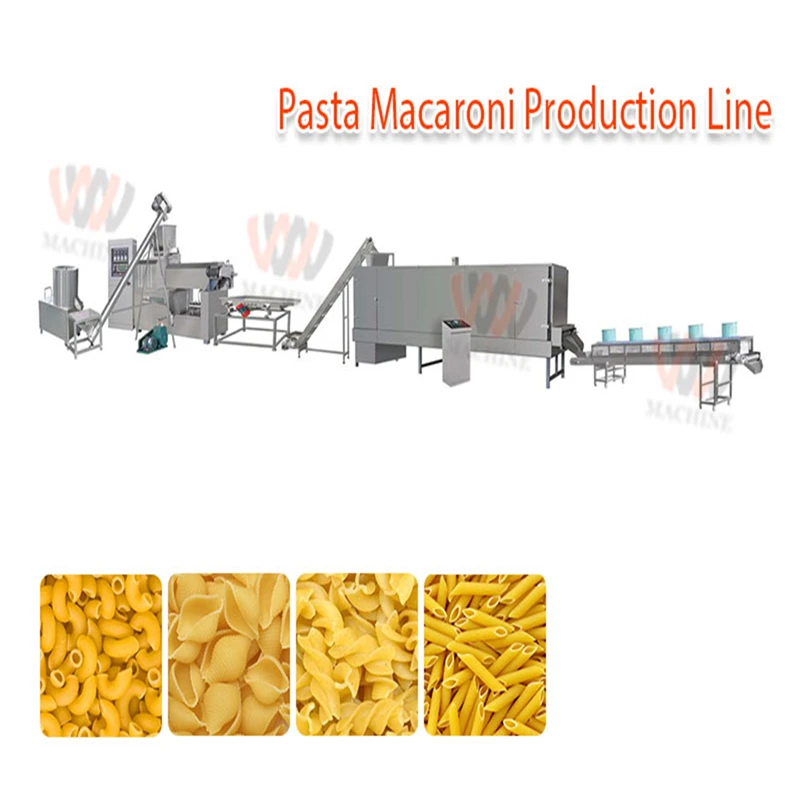

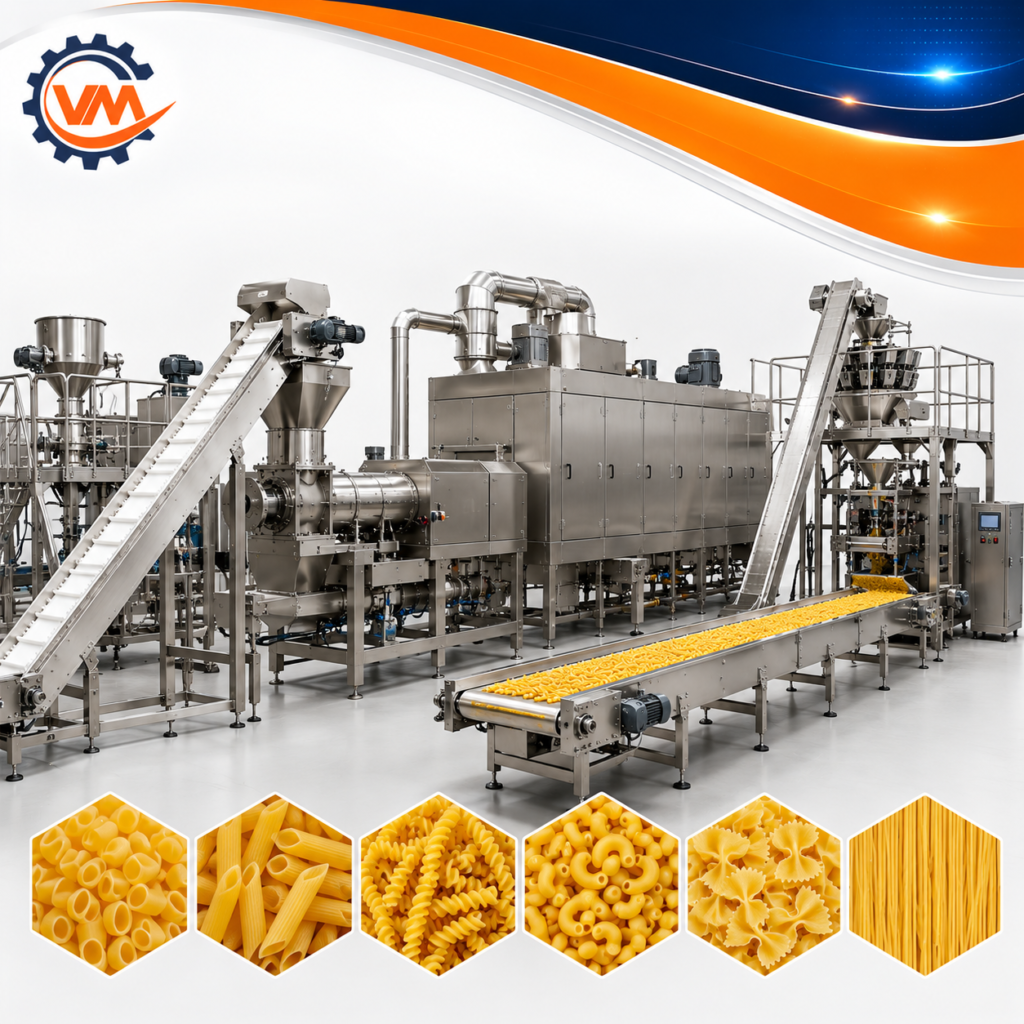

Pasta Production Line
Competitive price Corn Puff Extruder Machine,capacity 100-3000kg/h,different mould,OEM service.
This Pasta Production Line produces any shape including Anelli,Rainbow pasta,Fusilli,elbow,Penne with capacities ranging from 100 to 300 kg/h.
The mixing and pressing system is designed to get the best result when applying a wide variety of raw materials.
It is possible to implement a turnkey project from dough preparation and pressing to stabilization and packaging.
All pasta production lines are custom-made, include the best control electronics and are fully tested in the enterprise
Raw material:Main material is drum wheat flour or semolina wheat flour;water
Final products:short cut pasta,Tubular,Screw,Shell,etc.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB,Schneider,Mitsubishi,Delta,LG available
Burner brand:Baltur,RIELLO,Italy
Lead Time:10-15 days after receiving your deposit
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM100 Pasta Production Line | 115KW | 81KW | 120-150kg/h | 23000×1500×2500mm |
VM130 Pasta Production Line | 230KW | 160KW | 250-300kg/h | 25000×1500×2800mm |
Video
Pasta processing flow AND Equipment involved:
Processing flow :Mixing system; Extrusion system; Cutting system;Conveyoring system; Drying system; Packing system
Equipment involved:Mixer; Spiral conveyor; Single screw extruder; Cutter;Belt conveyor; Drying oven; Automatic packing machine.
Seperate equipment description：
Flour mixer or Blender
Function: mixing raw material ingredients such as drum wheat flour, water,etc.
Spiral Conveyor
Function: conveyoring the Materials spirally from the mixer to single screw extruder.
Spiral conveying with motor as power to ensure convenient and fast feeding.
Single Screw Extruder
Production Capacity: 100 – 300 Kg/h
Function:cooking the raw materials and make them to the required shape and size of pasta by mould. The Single screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.
Features of pasta single screw extruder:
(1)Single-screw Extruder mainly consist of feeding system, extruding system, cutter system heating system,driving system, and controlling system.
(2)Feeding system, extruding system and cutting system all adopt frequency-conversion timing to gain powerful drive, stable perform, and electricity saving.
(3)Screw, machine barrel, moulds all adopt circulating cooling system to ensure that during extruding, temperature of raw materials can keep steady.
(4)Due to being processed by special technique, the screw is abrasion-endurable, fatigue-resistant and durable.
Belt conveyor :
Function: conveyoring the pasta from the single screw extruder to an automatic dryer
Dryer machine:
Equipped with multi layers conveyor
Function: This automatic dryer machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as pasta,macaroni, noodles and other product, for which the water contents are high and long drying time is requested. The machine owns the advantages of adjustable drying speed, high evaporation capacity and good product quality.
Main Features of the automatic dryer machine:
1.Air quantity, heating temperature, materials staying time and feeding speed can be adjusted in order to improve drying quality.
2.The equipment configuration is flexible. The mesh belt washing system and materials cooling system are available to use.
3. Most of the hot air is reused to realize energy saving.
4.The machine is equipped with a unique air distributor; it distributes the hot air to the dryer and ensures the quality of products is constant.
5. The heat source can use steam, thermal oil, electricity, oil, or hot air furnace.
Cooling machine
Function: reduce the temperature after drying.
Pasta Automatic Packing Machine
Function:The automatic pasta packing machine is suitable to pack anomalous solid and the granule material ,such as Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware and medicine such particle, platy, strip and irregular shape.
This high performance automatic pasta packaging machine, can complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Main Features of the macaroni packing machine:
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Features of Pasta Production Line:
1.The pasta macaroni making machinery adotps most advanced technology in the word Making water and flour more fully mixed together to produce a variety productions in different shapes which are popular in the market, such as crispy pea, shell, screw, square tube, round tube, wave etc.
2.Our engineer studied in Italy before with rich vacuum extruder technology and experience.the mold is imported from Italy.
3.It is characterized by unique technics, rational configuration and stable performance. The macaroni machine can finish ripening , extruding and shaping in one step without boiler. The products look like glittering, smooth and nice color and taste delicious after cooking.pasta won’t be broken boiled in the boiling water for 45 minutes (tested).
