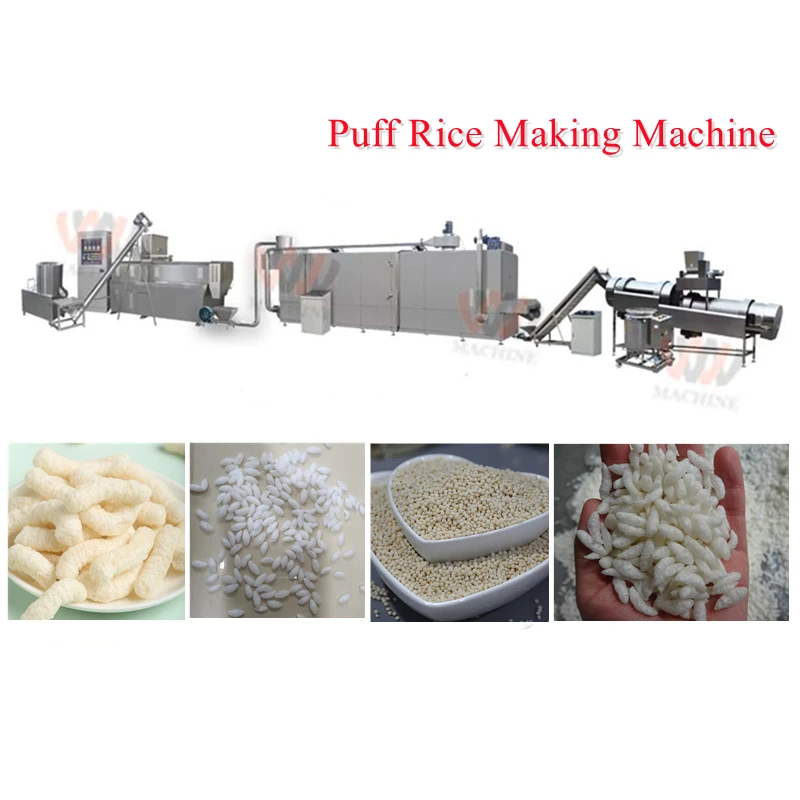

Puff Rice Making Machine
Competitive price puff rice making machine, double screw extruder capacity 100-1000kg/h. customized service.
The automatic Puff rice making machine, with the rice flour as materials, Just by changing the dies or choosing suitable production process, different shapes puff food can be available such as ring, ball, oval, flake, star, letter etc.
This puff rice production line will finish mixing, extruding, cutting, roasting, spraying, flavors seasoning, cooling and packing in one pass operation automatically. This has features of lots of types, flexible collocation, extensive applied materials, various products and easy operation.
Raw material:broken rice, rice flour, oat flour, barley powder, sugar, salt, water
Final products：Variety shapes are available for curls, ball, granules, tube, stick, ring, fruit loop, star, wheel and flower and heart shape
Machine material: Stainless steel 304 or as customer’s request
Electricity component brand:Siemens, ABB motor available; Delta, LG inverter available
Wanwei machinery service provided:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller’s factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller’s factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
8. The seller is responsible for the nature damage of the machinery in one year except for man-made damage.
9. All spare parts and wearing parts are attached with the machinery for Free.
Product Parameter:
Model Parameter | Installed Capacity | Power consumption | Output | Dimension |
VM65 | 92KW | 64KW | 120-150kg/h | 17500×1500×2500mm |
VM70 | 130KW | 90KW | 200-250kg/h | 19000×1500×2500mm |
VM85 | 240KW | 167KW | 300-500kg/h | 23000×1500×2500mm |
VM65 | 150KW | 100KW | 250-300kg/h | 22000×1500×2500mm |
VM75 | 185KW | 132KW | 300-500kg/h | 23000×2000×2800mm |
VM85 | 296KW | 220KW | 800-1000kg/h | 30000×3000×3800mm |
Video
Puff Snack Processing Flow And Equipment Involved:
Processing flow :Mixing system; Extrusion system; conveyoring system; Drying system; Flavoring system; Packing system
Equipment involved:Mixer; Spiral conveyor; Double screw extruder; Air conveyor; Drying oven; Flavor mixing drum; Oil sprayer; Automatic packing machine.

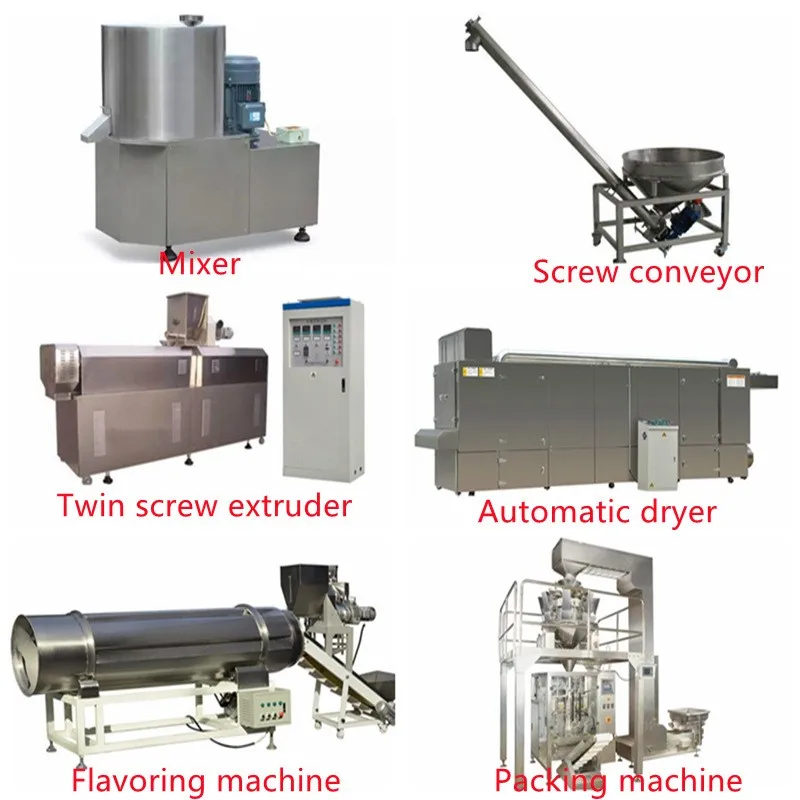

Equipment list of Puff Snacks Manufacturing Plant：
1.Flour Mixer: Mix raw materials like corn flour, wheat flour, and rice flour, etc. with a certain amount of water evenly and sufficiently.
2.Screw conveyor: Feed the mixed materials to the feeding hopper of food extruder machine.
3.Twin Screw Extruder: Raw materials fall into the extruding system from the feeding hopper. Under the function of high temperature and high pressure, the products are squeezed out. We can set different configurations for making different products.
4.Air Conveyor: Take advantage of the wind power, the materials are conveyed to the oven. Configure different air conveyors according to the different products we need.
5.Multi-layer Dryer: The dryer in the snacks manufacturing plant is mainly the electric type. Temperature is adjusted through the control cabinet from room temperature to 120 degree. There is a double-layer stainless mesh bag inside. The baking time is adjusted according to the speed. The oven of three-layer, five-layer, and seven-layer for your selection.
6.Oil sprayer:The oil sprayer spray oil on the surface of snack food through the rotating drum.The oil spraying amount and time can be adjusted.
7.Automatic Flavoring Line: There are an octagonal drum, single drum, and double drum flavoring. According to the capacity and product characteristics, we also have oil spraying, sugar spraying and coating equipment for your choice.
8.Automatic packing machine:This high performance automatic sanck food packaging machine, can complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Advantage Of Puff rice making machine:
1. Easy to control by automatic production line.
2. Optional fillings for cooking makes it easy to prepare all of the raw materials.
3. Using the corn or rice mash as the raw material, having the benefit of easy to getting and low-budget.
4. No wasting from being fully utilized of the raw materials.
5. Adjustable feeding speed according to the production requirements.
6. Variety of different shape product by replacing mold easily.
7. The cutting device of the extruder has a cover to ensure safe operation.
8. Adjustable baking or drying temperature and time.
9. Equipped with the temperature display and control device.
10. Insulation device to improve thermal efficiency.
11. Optional round and rectangular product cutting machine according to the requirements.
12. The powder sprinkler feeds the seasonings with a screw, and the amount of powder can be adjusted according to the requirements.
13. Integrated, safe and hygienic seasoning drum.
14. The equipment of the whole production cycle is made of stainless steel which is hygiene and easy to clean.
