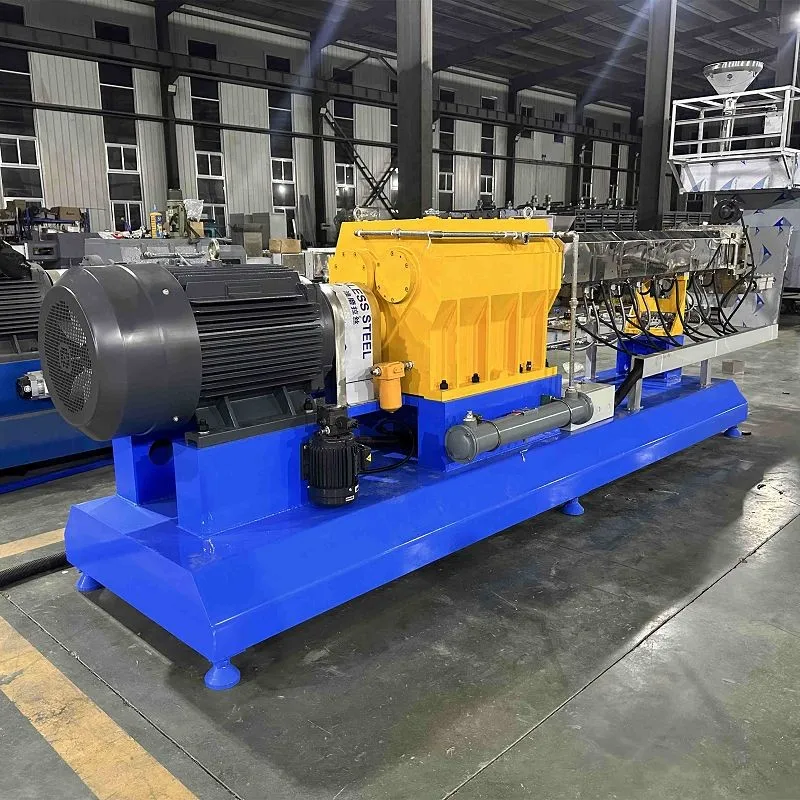

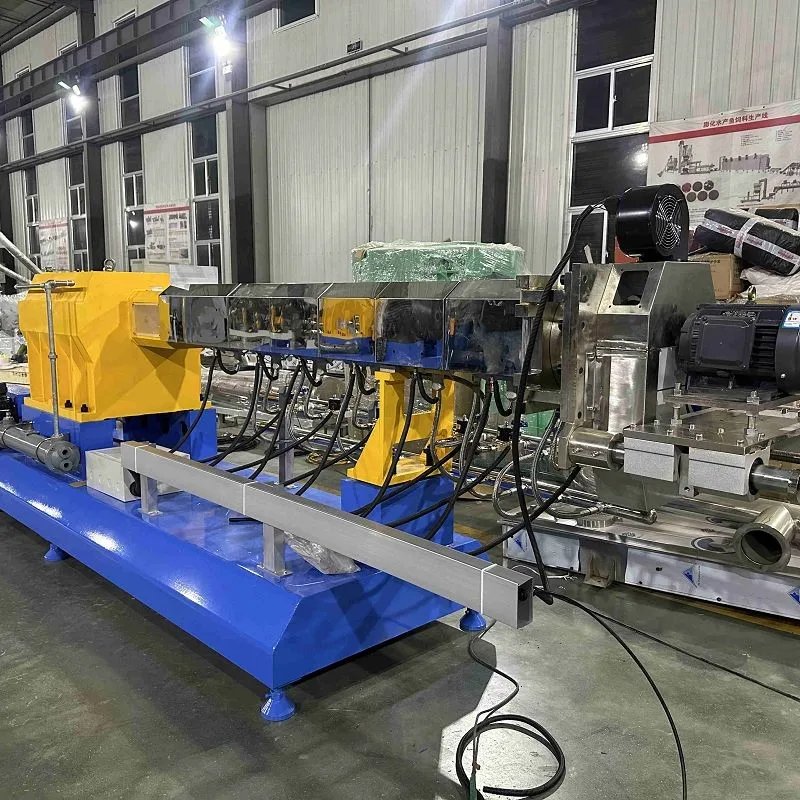

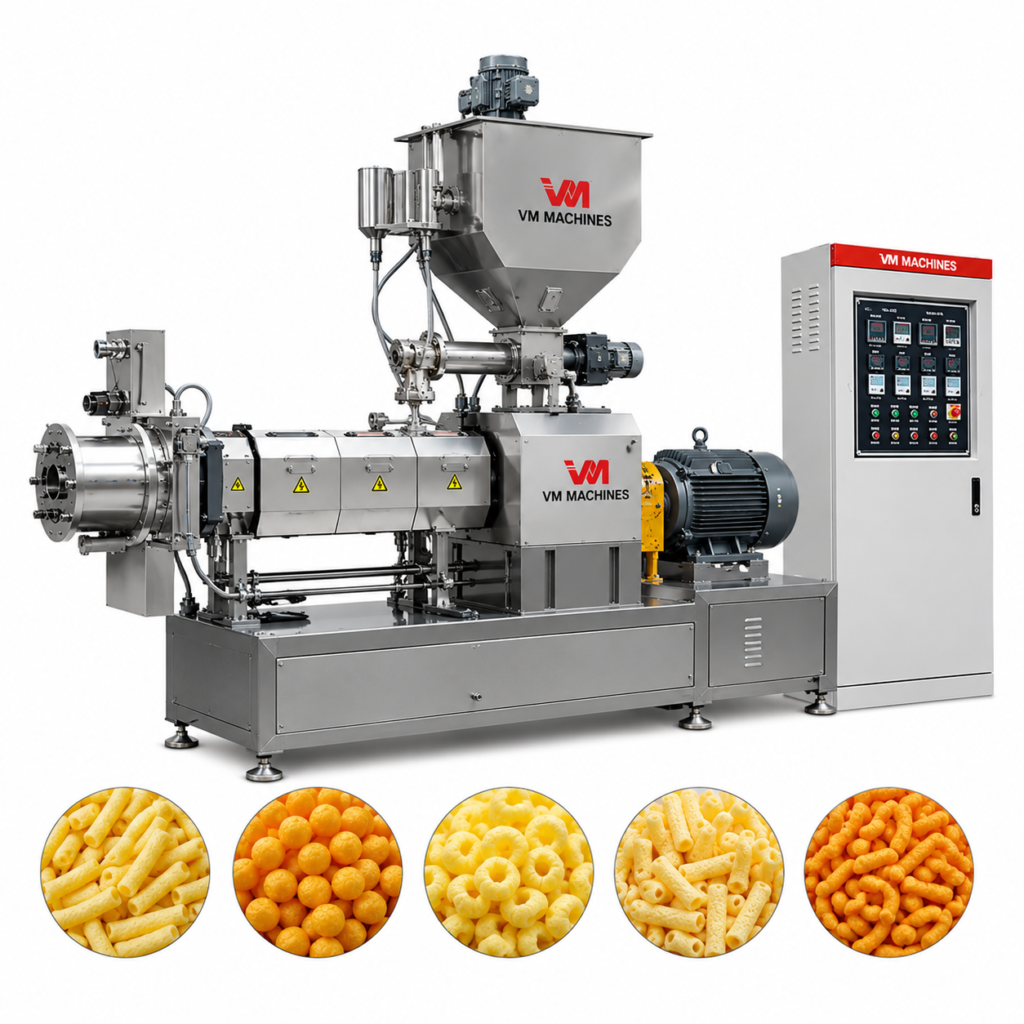

Puff Snack Extruder
The advanced Puff Snack Extruder consists of feeding system, extruding system, cutting system, heating system, controlling system and cooling system.The barrel adopts ray stainless steel heating circles to heat. and screw can be assembled freely according to different material and products.
The advanced Puff Snack Extruder consists of feeding system, extruding system, cutting system, heating system, controlling system and cooling system.The barrel adopts ray stainless steel heating circles to heat. and screw can be assembled freely according to different material and products.
The advanced Puff Snack Extruder is widely used for puffed snack machine and fried snack production line, corn flakes breakfast cereals processing line, pet food, pet snack, fish feed production line, fortified artificial and instant rice and porridge machine, rice straw production line,etc.
Machine material:Stainless steel 304 or as customer’s request
Electricity component brand:Siemens,ABB motor available;Delta,LG inverter available
Lead Time:10-15 days after receiving your deposit
After sale service provided:field installation,video technical support
Product Parameter:
Model | Installed Capacity | Main motor power | Output | Dimension |
VM65 | 115KW | 75KW | 300-400kg/h | 4500×1200×2500mm |
VM75 | 128KW | 90KW | 600-700kg/h | 5200×1500×2500mm |
VM78 | 125KW | 90kw | 700-800kg/h | 5200×1500×2500mm |
VM85 | 150KW | 110KW | 1000-1200kg/h | 6200×1500×2700mm |
VM95 | 180KW | 132kw | 1500-2000kg/h | 6500×1500×2500mm |
Video
Features of Puff Snack Extruder:
1.Automatic lubricating system reduces energy consumption.
2.PLC touch screen for Centralized, accurate, convenient control.
3.Fully automatic control system for heating and circulated cooling accurately.
4.Direct transmission of motor and distribution box reduces energy loss.
5.Imported bearing group with higher bearing capacity.
6.Equip with water injecting device on barrel to meet require of various raw material and quality.
7.High-speed tool steel with hardness HRCHRC≥70 to live a longer life.
8.Modular combination of screws at will to meet require of different raw material.
9.Suspension type rotary cutter with bearing adjusting device to ensure quick, safe and accurate.
10.Adjustable speed of feeder, main drive and rotary cutter by inverter with powerful impetus, stable running and low consumption.
